3.
Remove the electric waste gate actuator by loosening the bolts (C).
Remove the turbo charger.
(Refer to Engine Mechanical System - "Turbo Charger")

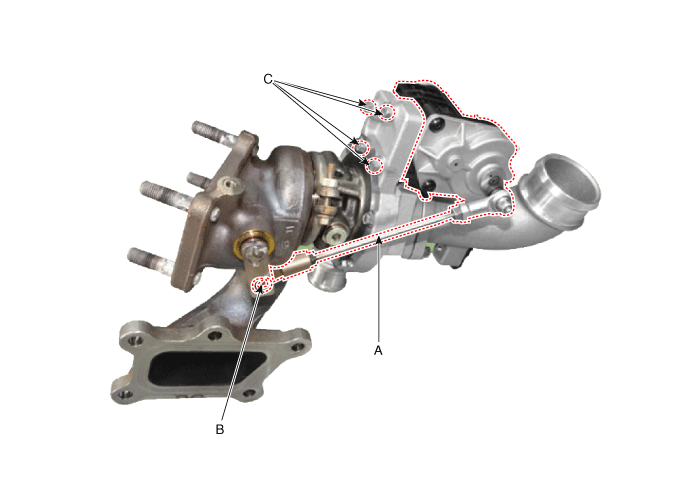

Disconnect the shaft link (A) by removing the C-ring (B).
Remove the electric waste gate actuator by loosening the bolts (C).
Install the component to the specified torques.
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
Install in the reverse order of removal.
Electric Waste Gate Actuator (EWGA) mounting bolt:
6.0 ~ 8.0 N.m (0.6 ~ 0.8 kgf.m, 4.4 ~ 5.9 lb-ft)
