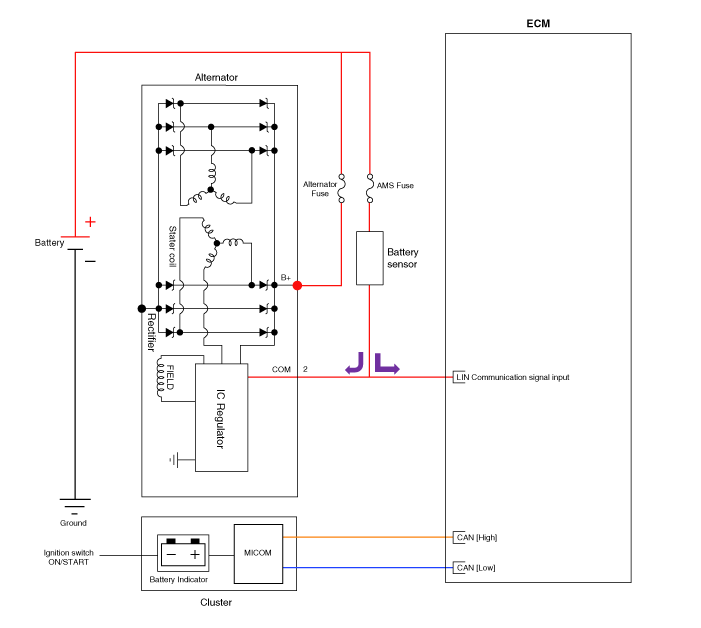

COM signal - When controlling the voltage generated, the ECM sends the target voltage data to the alternator via a PWM signal.(High voltage: 4V or higher, low voltage: 2V or lower)

B+ terminal - The output voltage from the generator travels to the battery via the B+ terminal.
