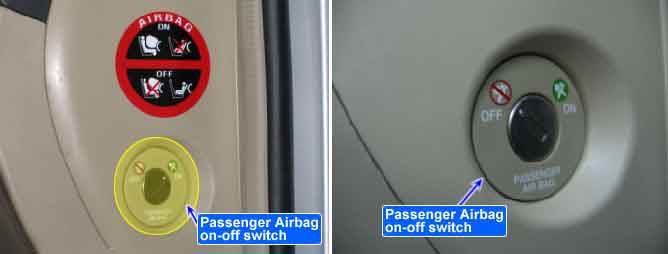

Component Location
General Description

PAD Switch(Passenger airbag deactivation Switch) is the device which prevents Passenger airbag from being deployed when the passenger seat is unoccupied as driver turning OFF PAD Switch.

When PAD Switch turned OFF, " PASSENGER SRS OFF" lamp turns ON.

DTC Description

The above DTC is recorded when PAD Switch signal inputted to SRSCM changes for a while from ON to OFF and vise versa.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

● Check Resistance

● Faulty PAD Switch.

● Faulty SRSCM.

Enable Conditions

● Ignition "ON"

Threshold Value

● Sensor line resistance is not stable between enable and disable

Diagnostic Time

Qualification

● More than 15 sec

De-Qualification

● No

Schematic Diagram
