As monitoring the errors of several sensors and actuator circuit, TCM related problem and ECM error, if any problem occurs, ECM turns Engine Check Lamp ON at cluster to notify driver the occurence of a problem.Generally, Engine Check Lamp turns ON at Ignition ON and turns OFF within couple of seconds after turning engine ON. If engine check lamp turns on during driving, perform diagnosis of engine system and auto-transaxle system.
P0652 is set when the voltage below 4.7V - minimum voltage of sensor power supply 2 generates from ECM - is detected for more than 0.1 sec.. This code is due to the short to ground in sensor power circuit or the voltage problem inside of ECM.
Item | Detecting Condition | Possible Cause | ||
DTC Strategy | ● Voltage monitoring | ● RPS power supply circuit ● APS 2 power supply circuit ● BPS power supply circuit ● ECM component | ||
Enable Conditions | ● IG KEY "ON" | |||
Threshold Value | ● when the voltage is below the minimum voltage of sensor power supply ( below 4.7V ) | |||
Diagnostic Time | ● 0.1 sec. | |||
Fail Safe | Fuel cut | NO | ||
EGR Off | NO | |||
Fuel Limit | YES | |||
Check Lamp | NO | |||
Sensor power 1 | Sensor power 2 | Sensor power 3 |
AFS, APS 1 4830mV~5158mV | RPS, APS 2,BPS 4830mV~5158mV | A/C pressure transducer,VSA position Sensor 4830mV~5158mV |
Electrical systems consist of a lot of harness and connectors, poor connection of terminals can cause various problems and damge of component.
Perform checking procedure as follows.
Check damage of harness and terminals : Check terminals for contact resistance, corrosion and deformation.
Check connecting condition of ECM and component connector : Check terminal seperation, damage of locking device and connecting condition between terminal and wiring.
Disconnect the pin which requires checking at male connector and insert it to the terminal at female connector for checking connecting condition. ( after checking, reconnect the pin at correct position. )
Is the problem found?
▶ Repair the trouble causing part and go to "Verification of Vehicle Repair".
▶ Go to "Power Circuit Inspection".
Check power circuit voltage
IG KEY "OFF", ENGINE "OFF".
Disconnector RPS connector, APS connector and BPS connector.
IG KEY "ON".

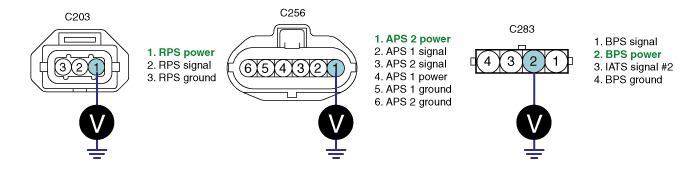

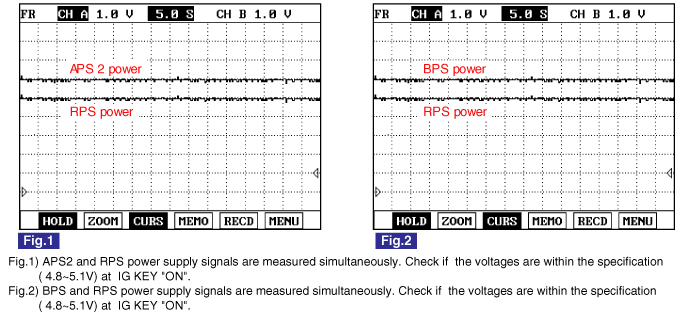

Measure the voltage of RPS connector terminal 1, APS connector terminal 1 and BPS terminal 2.
Specification : 4.8V~5.1V
Is the measured voltage within the specification?
▶ Go to "Component Inspection".
▶ Go to "2. Check short to ground in power circuit" as follows.
Check short to ground in power circuit
IG KEY "OFF", ENGINE "OFF".
Disconnect RPS connector, APS connector, BPS connector and ECM connectors.

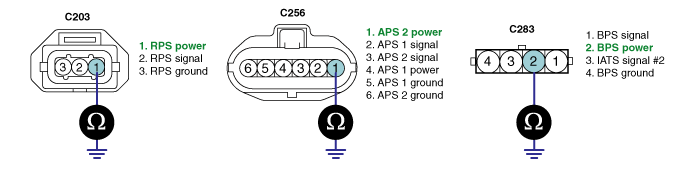

Check continuity between RPS connector terminal 1(APS connector terminal 1, BPS terminal 2) and chassis ground.
specification : Discontinuity ( Infinite Ω )
Is the measured resistance within the specification?
▶ If the circuit is insulated well and the sensor power supply from ECM is low, replace ECM and go to "Verification of Vehicle Repair".
▶ Repair short to ground and go to "Verification of Vehicle Repair".
IG KEY "OFF", ENGINE "OFF".
Disconnect RPS connector, APS connector, BPS connector.
Check that sensor connector power supply is within the specification after turning IG KEY "ON".
Connect RPS connector and APS connector in turn.
Measure the voltage of power circuit of each sensor with all connector connected.
Specification : sensor power supply should not change as connecting RPS connector, APS connector, BPS connector.
( If the change of sensor power supply occur as connecting sensor connector, this means the occurrence of short inside of sensor.)
Does change of sensor power supply occur as connecting sensor connector?
▶ Replace related sensors.(rail pressure sensor, accel pedal sensor, boost pressure sensor)
▶ Go to "Verification of Vehicle Repair".
After a repair, it is essential to verify that the fault is corrected.
After connecting Scantool select "DIAGNOSTIC TROUBLE CODES(DTCs)" mode.
Clear recorded DTC using Scantool.
Drive the vehicle within DTC "Enable conditions" in "General information".
After selecting "DIAGNOSTIC TROUBLE CODES(DTCs)" mode and check if DTC is recorded again.
Are any DTCs recorded ?
▶ Go to the DTC guide of recorded NO. in Scantool.
▶ System operates within specification.
