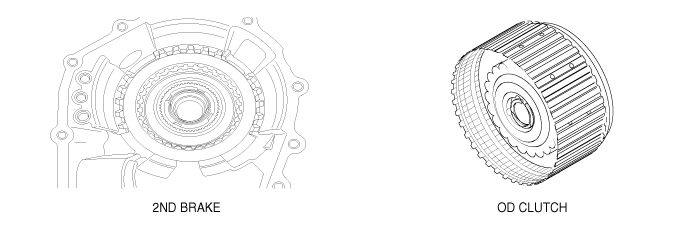

COMPONENT LOCATION
GENERAL DESCRIPTION

The value of the input shaft speed should be equal to the value of the output shaft speed, when multiplied by the 4th gear ratio, while the transaxle is engaged in the 4th gear. For example, if the output speed is 1,000 rpm and the 4th gear ratio is 0.712, then the input speed is 0,712 rpm.

DTC DESCRIPTION

This code is set if the value of input shaft speed is not equal to the value of the output shaft, when multiplied by the 4th gear ratio, while the transaxle is engaged in 4th gear. This malfunction is mainly caused by mechanical troubles such as control valve sticking or solenoid valve malfunctioning rather than an electrical issue.

DTC DETECTING CONDITION

Item

Detecting Condition

Possible cause

DTC Strategy

4th gear incorrect ratio

Faulty Input speed sensor

Faulty output speed sensor

Faulty UD clutch or 2nd brake

Enable Conditions

Engine speed >450rpm

Output speed >900rpm

Shift stage 4th. gear

Input speed >0rpm

A/T oil temp sensor voltage <4.5V

Voltage of Battery >10V

TRANSAXLE RANGE SWITCH is normal and above 2sec is passed from IG ON

Threshold value

ㅣInput speed/4th gear ratio - output speed ㅣ≥200rpm

Diagnostic Time

More than 1sec

Fail Safe

Locked into 3rd gear.

(If diagnosis code P0734 is output four times, the transaxle is locked into 3rd gear)

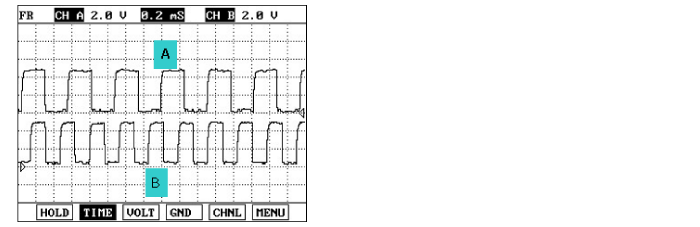

SIGNAL WAVEFORM

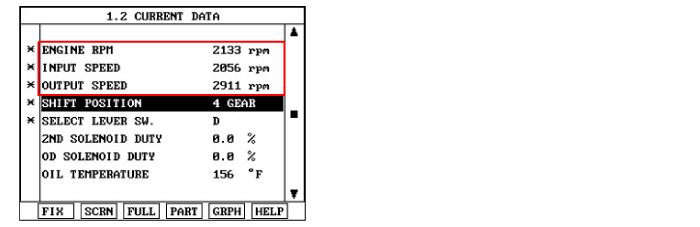

MONITOR SCANTOOL DATA

※ It is difficult to "STALL TEST" in 4th gear, therefore Go to "Signal Circuit Inspection" procedure.

OPERATING ELEMENT OF EACH SHIFTING RANGE

UD/C

OD/C

REV/C

2ND/B

LR/B

OWC

P

R

N

D1

D2

D3

D4

※ Low & Reverse Brake is released when the vehicle speed is over 7Km/h(5 MPH).

SIGNAL CIRCUIT INSPECTION
1.

Connect Scantool.

2.

Engine "ON".

3.

Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scantool.

4.

Accelerate the Engine speed until about 2000 rpm in the 4th gear.

Specification : INPUT SPEED - (OUTPUT SPEED × GEAR RATIO) ≤ 200 RPM

5.

Are "INPUT & OUTPUT SPEED SENSOR" within specifications?

▶ Go to "Component Inspection" procedure.

▶ Check for electrical noise of circuit in INPUT & OUTPUT SPEED SENSOR or replace INPUT & OUTPUT SPEED SENSOR. Repair as necessary and go to "Verification of Vehicle Repair" procedure.

COMPONENT INSPECTION
1.

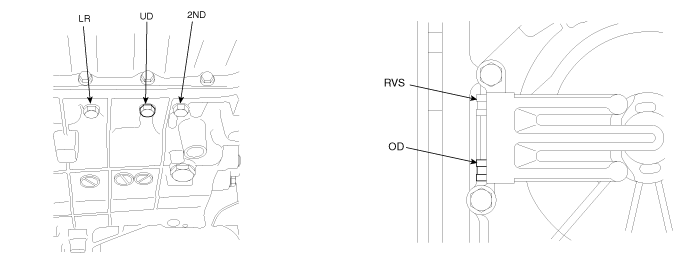

Connect Oil pressure gauge to "OD" and "2nd" port.

2.

Engine "ON".

3.

Drive the car with gear position "4".

4.

Compare it with reference data as below.

Specification : shown below

Measurement condition

Standard hydraulic pressure kPa (psi)

Selector lever position

Shift position

Engine speed (rpm)

Under drive clutch pressure

Reverse clutch pressure

Overdrive clutch pressure

Low&reverse brake pressure

Second brake pressure

Damper clutch Apply pressure (DA)

Damper clutch Release pressure (DR)

P

-

2,500

-

-

-

260-340

(38-50)

-

-

-

R

Reverse

2,500

-

1,270-1,770

(185-256)

-

1,270-1,770

(185-256)

-

-

-

N

-

2,500

-

-

-

260-340

(38-50)

-

-

-

D

1st gear

2,500

430-510

(62-74)

-

-

1,010-1,050

(146-152)

-

-

-

2nd gear

2,500

430-510

(62-74)

-

-

-

430-510

(62-74)

-

-

3rd gear

2,500

430-510

(62-74)

-

430-510

(62-74)

-

-

More than 730 (100)

0-10

(0-1)

4th gear

2,500

-

-

430-510

(62-74)

-

780-880

(110-130)

More than 730 (100)

0-10

(0-1)

※ The values are subject to change according to vehicle model or condition

5.

Is oil pressure value within specification?

▶ Repair AUTO TRANSAXLE(Clutch or Brake) as necessary and go to "Verification of Vehicle Repair" procedure.

▶ Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and go to "Verification of Vehicle Repair " procedure.

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault has been corrected.

1.

Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode.

2.

Using a scantool, Clear DTC.

3.

Operate the vehicle within DTC Enable conditions in General information.

4.

Are any DTCs present ?

▶ Go to the applicable troubleshooting procedure.

▶ System performing to specification at this time.
