4.
Check the fuel pump operation(with pumping sound).
The purpose of fuel pump actuation test is to check fuel system with possible ignition condition. If the fuel pump is operated well with pumping sound by actuation test, go to "Fuel pump is OK Inspection " procedure. If the fuel pump is not operated, go to "Fuel pump is bad" procedure.
Connect a scantool to Data Link Connector(DLC).
IG "ON"

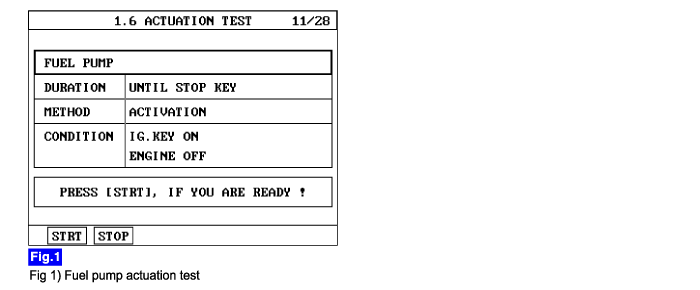

Perform fuel pump actuation test using a scantool.
Check the fuel pump operation(with pumping sound).
Does the fuel pump work normally?
YES
Go to "Fuel pump is OK Inspection" procedure.
NO
Go to "Fuel pump is bad Inspection" procedure.
