Description

Because fuel consumption is affected by tire condition(pressure, flat tire etc...), All tire pressures always should be checked.

Diagnostic Procedure
1.

Be sure the vehicle is on level ground.

2.

Turn the engine off.

3.

Check the parking brake and shift lever "P" position for safety.

4.

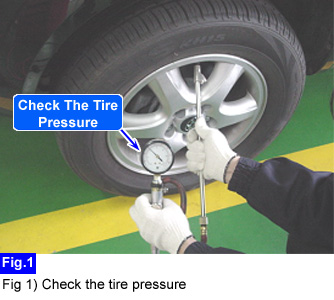

Check the tire pressure with tire pressure gauge.

A.

Specification: 30±0.1 psi

5.

Is the tire pressure within specification?

YES

Tire is OK

NO

Inflate the tire and check tire condition (tread wear, flat tire etc...)
