Description

First of all, Inspect the vehicle status. If engine starting is impossible, there are lots of causes. Inspect that warning lamps on the cluster must be "ON" , engine cranking is possible (starter is normal) and engine cranking rpm is regular at IG "START (engine cranking)".

Diagnostic Procedure
Cranking condition inspection
1.

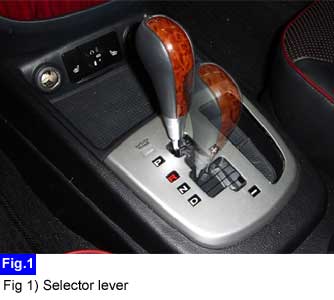

Make sure a selector lever of the Automatic Transaxle should be "P (N)".

2.

IG "START"

3.

Check a rotation of the starter.

A.

Case 1 : In case of possible cranking,

Go to "Possible cranking inspection" procedure.

B.

Case 2 : In case of impossible cranking, (Warning lamps on the cluster are "ON", starter does not work.)

Go to "Impossible cranking inspection" procedure.

C.

Case 3 : In case of that cranking velocity is too slow. (Warning lamps on a cluster are faint gradually, starter does not work normally.)

Go to "Battery inspection" procedure.

D.

Case 4 : In case that cranking sound is abnormal or cranking rpm is irregular.

Go to "Cranking rpm is irregular inspection" procedure.
