ETC(Electronic Throttle Control Valve) is the device controlling amount of air to engine acccording to driver’s intension. Different from the existing mechanical throttle valve which is composed of accelerator pecal and connecting wire cable, ETC consists of a motor, a throttle body and a throttle position sensor. Receiving input signals from electronic accelerator pedal module, PCM lets ETC motor control throttle valve. With ETC, cruise control system works without any additional device.
Checking output signals from TPS2 every 8.5 sec. under detecting condition, if an output signal is below 0.25V for more than 0.1 sec, PCM sets P0222. MIL(Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.

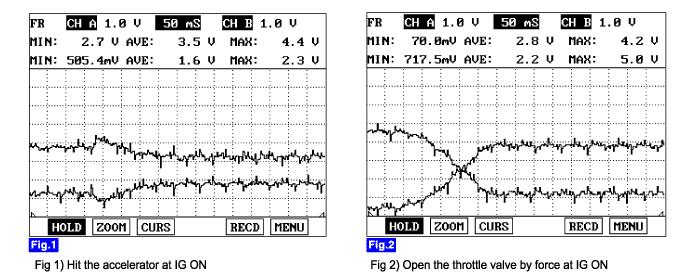

Item | Detecting Condition | Possible Cause |
DTC Strategy | ● Signal low | ● Poor connection ● Open or short to ground in power harness ● Open or short to ground in signal harness ● TPS ● PCM |
Enable condition | ● IG "ON" | |
threshold value | ● The signal voltage of TPS < 0.25V | |
diagnosis time | ● Continuous (More than 0.1 sec. failure for every 8.5 sec.test) | |
MIL ON condition | ● 2 driving cycles |
Throttle opening ( ° ) | Output voltage(V) [Vref=5.0] | Throttle opening ( ° ) | Output voltage(V) [Vref=5.0] | ||
TPS1 | TPS2 | TPS1 | TPS2 | ||
0° | 0.0V | 5.0V | 60° | 2.7V | 2.3V |
10° | 0.5V | 4.5V | 70° | 3.2V | 1.8V |
20° | 0.9V | 4.1V | 80° | 3.6V | 1.4V |
30° | 1.4V | 3.6V | 90° | 4.1V | 0.9V |
40° | 1.8V | 3.2V | 100° | 4.5V | 0.5V |
50° | 2.3V | 2.7V | 110° | 5.0V | 0.0V |
