Remove the clutch cover bolts. Not to be bent or twisted, loosen them in diagonal directions.
Remove a transaxle assembly (refer to 'MT'-group).
Remove the clutch cover bolts. Not to be bent or twisted, loosen them in diagonal directions.
Remove the clutch cover and disc.
Using the SST(09411-43000), install a clutch disc and cover.
Replace a clutch cover and disc as a set.
* Possible problems when not following the caution
- When replacing only a disc, slip problem can occur because of the initial clamp load loss by the adjusting ring's unusual work. - When replacing only a disc, it can be difficult to cut power because the thickness of the disc cannot be permitted. |
Apply grease on a disc spline part and transmission input shaft spline part as required.
* Possible problems when not following
- When not applying: Excessively wear of splines and bad clutch operation - When excessively applying: Scattered grease by centrifugal force conteminates the clutch disc. Loss of friction force can cause a slip |

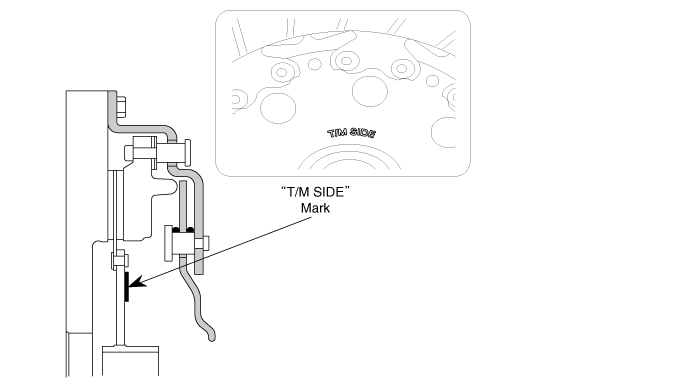

The 'T/M SIDE' marked surface should face the transaxle.
→ If the surface face the opposite side, there can be an interference between a disc and a flywheel surface.
Tighten the clutch cover.
TORQUE:
24.5~35.3Nm (2.5~3.6kgf.m, 18.1~26.0lb-ft) (6EA)
When installing the clutch cover, tighten the bolts in diagonal directions not to be bent or twisted.
* Possible problems when not following
When tightening the bolt completely at a time: the clutch cover can be twisted and vibration can occur.
On vehicles with self adjusting clutches, it is necessary to follow this caution.
Not following tightening torque: There can be bad torque transmission in clutch and relaxation possibility of bolts.
Inspect diaphragm spring wear which is in contact with a concentric slave cylinder bearing.
Check the clutch cover and disc surface for wear or crack.
Check the clutch disc lining for slipping or oil mark.
Measure the depth from a clutch lining surface to a rivet. If the measured value is less than the specification below, replace it.
Specification: 0.3mm(0.0118in)
