DESCRIPTION

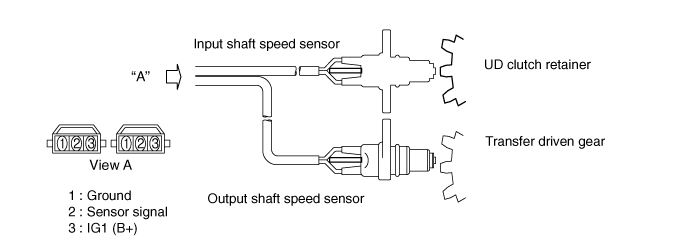

Input shaft speed sensor

- Type: Hall sensor

- Current consumption: 22mA (MAX.)

- Sensor body and sensor connector have been unified as one.

Hall type sensor: specification

Air gap (mm)

Input shaft speed sensor

1.3

Coil Resistance

Input shaft speed sensor

over 1MΩ

Peak-Peak Voltage

High

4.8~5.2V

Low

0.8V

Wave Form With High-scan

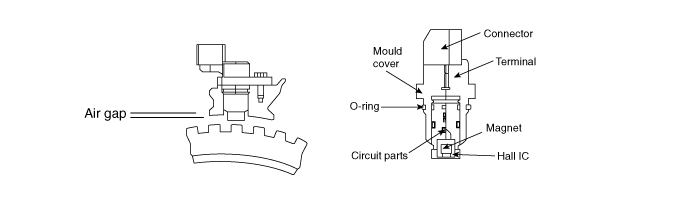

Hall Type Sensor: Structure & Interface
