3.

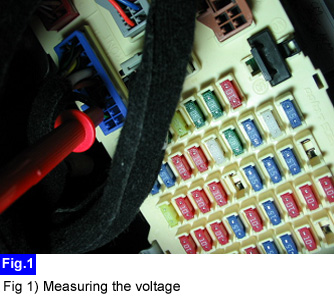

Measure the voltage between terminal "3(I/P-A)" of the I/P J/box(burglar alarm relay) harness connector and chassis ground.
caution
Probe(+) : Terminal "3(I/P-A)" of the I/P J/box
Probe(-) : Chassis ground
A.
Specification : Approx.B+
If there is a problem in the burglar alarm relay circuit, starter solenoid would not be operated. The purpose of the inspection is to check burglar alarm relay circuit.
IG "OFF"
IG "START"
Measure the voltage between terminal "3(I/P-A)" of the I/P J/box(burglar alarm relay) harness connector and chassis ground.
Probe(+) : Terminal "3(I/P-A)" of the I/P J/box
Probe(-) : Chassis ground
Specification : Approx.B+
Is the measured voltage within Specification?
YES
Check for open terminal "3(I/P-A)" of the I/P J/box of the between "28(UH-B) of the U/H junction box.
NO
Check for open terminal "3(I/P-A)" of the I/P J/box(burglar alarm relay) and Ignition switch.
Check the START fuse(10A).
Faulty Burglar alarm relay(I/P J/box).
Check for open terminal "9(I/P-k)" I/P J/box of the between BCM.
Faulty BCM.
