3.

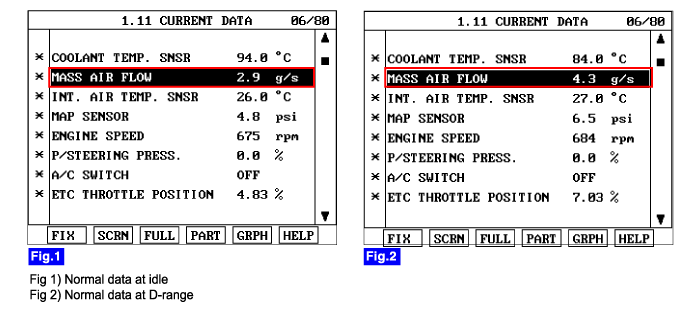

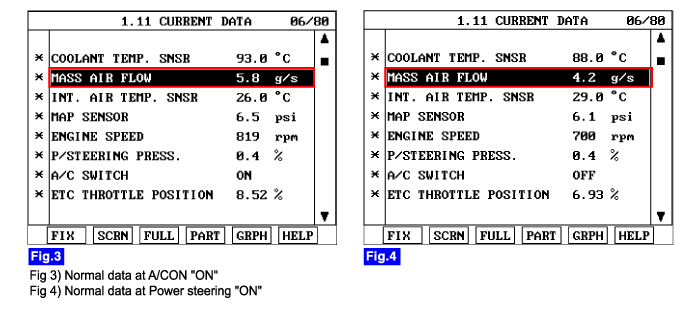

Check current data.
caution
This current data is nothing but an example at certain condition. Thus, the real current data and waveform could be different from this example.
The purpose of the Inspection is to analyze the cause of engine hesitation by checking MAFS current data measured at various loading condition.
Engine "ON" and allow the engine to warm up to normal operating temperature.
Connect a scantool to Data Link Connector (DLC).

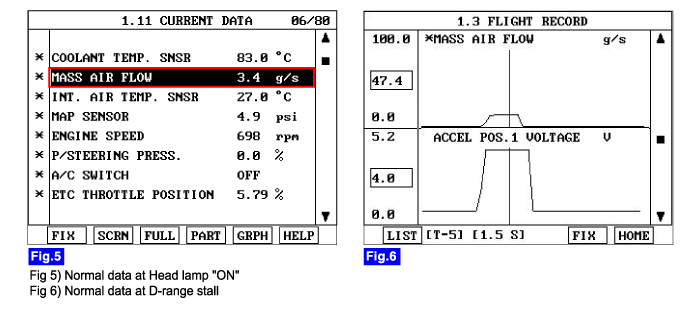

Check current data.
This current data is nothing but an example at certain condition. Thus, the real current data and waveform could be different from this example.
Is current data normal?
YES
MAFS is OK.
NO
Check related harness or Replace the sensor.
