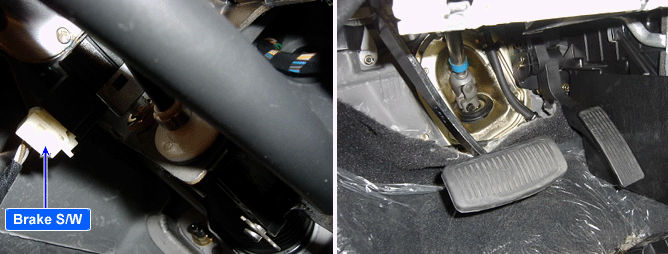

Component Location
General Description

Brake switch connected to brake pedal transfers brake operating state to PCM. For diagnosis of abnormal operation of Brake switch, two types of signals(one from Brake warning lamp switch, the other from Brake checking switch) are used and those two types output different signals at both condition, depressing or releasing brake pedal. When brake pedal is depressed, brake checking switch outputs B+ voltage while brake warning lamp switch emits 0V. Conversly, when brake pedal is released, the output signals of each switch are opposite.

DTC Description

Checking output signals from both brake switch when all of them are On or OFF simultaneously, if abnormal signal is detected for more than 0.5 sec., an error is recognized. And if this condition lasts for certain period PCM sets P0504. MIL(Malfunction Indication Lamp) turns on when the malfunction lasts till cosecutive 2 driving cycle.

DTC Detecting Condition

Item

Detecting Condition

Possible cause

DTC Strategy

● Comparing 2 brake signals during driving

● Poor connection

● Open or Short

● Faulty PCM

Enable Conditions

Case 1

● Engine works

● Vehicle Speed Sensor is abnormal.

Case 2

● Engine works

● Vehicle Speed Sensor is normal and Vehicle Speed is over 20kph during 1sec or more.

Threshold value

● The one brake signal’s change duration when another signal has been changed > 0.5 sec

Diagnosis Time

● Continuous

MIL On Condition

● 2 driving cycles

Specification

Item

During taking off the brake

During stepping on the brake

Brake Lamp Switch

0V

Battery voltage

Brake Switch

Battery voltage

0V

Schematic Diagram
