3.
Has a problem been found?
▶ Repair as necessary and then go to "Verification Of Vehicle Repair" procedure.
▶ Go to "Component Inspection" procedure.

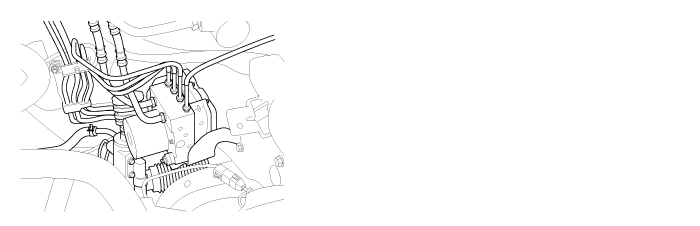

The HECU send requirement data, such as Torque reduction, the number of fuel cut cylinders, and TCS control requests, to the PCM(ECM ＆ TCM) through CAN bus line. The PCM(ECM) performs fuel cut functions according to requests from the HECU and retards ignition timing by torque reduction requests. The PCM(TCM) maintains current gear positions during TCS control time, in order not to increase power which causes a Kickdown shift.
The HECU checks the CAN control module for normal TCS control, and sets this code if CAN control module malfunction is detected.
Item | Detecting Condition | Possible cause |
DTC Strategy | ● CAN control module monitoring | ● Inoperative HECU |
Monitoring Period | ● Immediate during start up | |
Enable Conditions | ● Faults are detected immediately if the initialization software can't have write access to the configuration registers of the CAN-controller module. | |
Fail Safe | ● Inhibit the ESP control and ABS/EBD control is available. Meanwhile, stop checking the ESP switch failure under the ESP control. |
Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Has a problem been found?
▶ Repair as necessary and then go to "Verification Of Vehicle Repair" procedure.
▶ Go to "Component Inspection" procedure.
Ignition "OFF".
Ignition "ON".
Connect scantool and select "Diagnostic Trouble Codes (DTCs)" mode.
Using a scantool, Clear DTC.
Select "Diagnostic Trouble Codes (DTCs)" mode again.
Are any DTCs present ?
▶ Substitute with a known-good HECU and check for proper operation. If problem is corrected, replace HECU and then go to "Verification Of Vehicle Repair" procedure.
▶ Fault is intermittent caused by faulty HECU or was repaired and HECU memory was not cleared. go to "Verification Of Vehicle Repair" procedure.
After a repair, it is essential to verify that the fault has been corrected.
Connect scantool and select "Diagnostic Trouble Codes (DTCs)" mode
Using a scantool, Clear DTC.
Operate the vehicle within DTC Detecting Condition in General Information
Are any DTCs present?
▶ Go to the applicable troubleshooting procedure.
▶ System performing to specification at this time.
