INSPECTION
1.

Ignition "OFF"

2.

Disconnect the connector of temperature control actuator.

3.

Verify that the temperature control actuator operates to the hot position when connecting 12V to the terminal 3 and grounding terminal 4.

Verify that the temperature control actuator operates to the cool position when connecting in the reverse.

[DRIVER]
Specification

Door position

Voltage (6-7)

Error detecting

Max. cooling

0.3 ± 0.15V

Low voltage :

0.1V or less

Max. heating

4.7 ± 0.15V

High voltage :

4.9V or more

[PASSENGER]
Specification

Door position

Voltage (5-6)

Error detecting

Max. cooling

0.3 ± 0.15V

Low voltage :

0.1V or less

Max. heating

4.7 ± 0.15V

High voltage :

4.9V or more

It will feedback current position of actuator to controls.

4.

If the measured voltage is not specification, substitute with a known-good temperature control actuator and check for proper operation.

5.

If the problem is corrected, replace the temperature control actuator.

REPLACEMENT
1.

Disconnect the negative (-) battery terminal.

2.

Remove the driver’s crush pad lower panel (Refer to BD- Crash pad)

3.

Disconnect the temperature control actuator connector (A) after removing the air duct.

4.

Loosen the mounting screw and then remove the temperature control actuator (B).

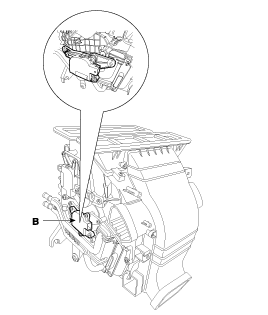

[Passenger's]

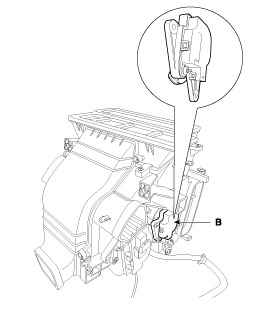

[Driver's]
5.

Installation is the reverse order of removal.
