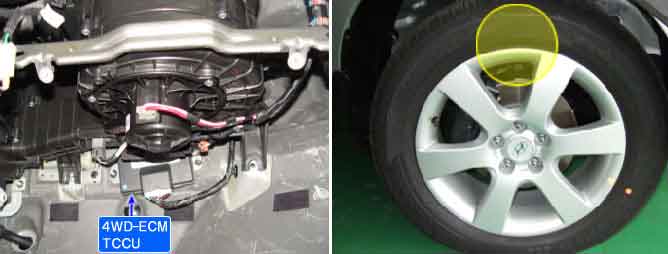

Component Location
General Description

ITM(InterActive Torque Management) system can detect the tire size fault by calculating each wheel speed, if the tire size equipped at the vehicle is 10% bigger than normal tire.

Wheel Speed Sensor senses vehicle speed and difference between front and rear wheel speed.

Opreation for getting Rotating Speeds of front/rear wheel can be got from deviding wheel speed sensor Rotating Speeds of front/rear by 2.

DTC Description

This code is set, if ITM-ECU detect tha the tire size is 10% bigger than normal tire by calculating each wheel speed.

When the failure is set there is no signal in the warning lamp, just ITM-ECU sets and stores this code.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

● A tire is estimated to have a tire size 10% more that the base tire size

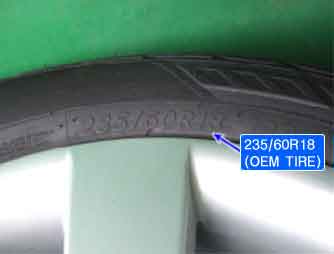

● TIRE SIZE (OEM:235/60R18)

● Faulty TCCU .

Enable Conditions

● Message present 1.0 sec self clearing

Threshold Value

● Estimated tire size has been detected and has matured for 1 second

Diagnostic Time

● 1 sec

MIL on condition

●

Fail Safe

● Active fault is set, but lamp is not turned on

Schematic Diagram
