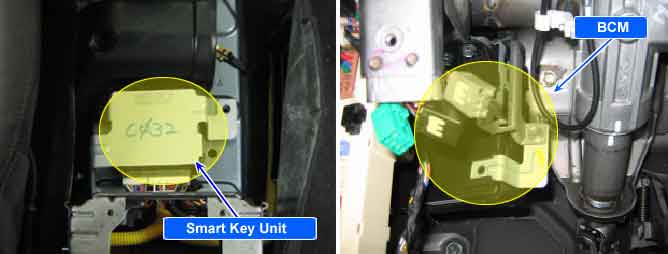

Component inspection

General Description

CAN Communication is a circuit, consists of CAN LOW and CAN HIGH, in order to communicate among control units.

Control Modules are respectively communicating via CAN line in order to control Body Electrical.

DTC Description

Smartkey Module sets DTC B1603 if smart key module detects short to battery, short to ground in CAN HIGH and CAN low simultaneously.

This DTC means that both CAN HIGH and CAN LOW line are error. Therefore, CAN communication is not available.

DTC Detecting Condition

Item	Detecting Condition	Possible cause
DTC Strategy	• CAN Signal Check	• Poor Connection • Power Source to smart key module • Short to battery in CAN HIGH LOW or ground simultaneously. • Faulty Smartkey Module
Enable Conditions	• IG ON
Threshold value	• CAN communication Error for 2 sec.
Failsafe	• -

Diagnostic Circuit Diagram

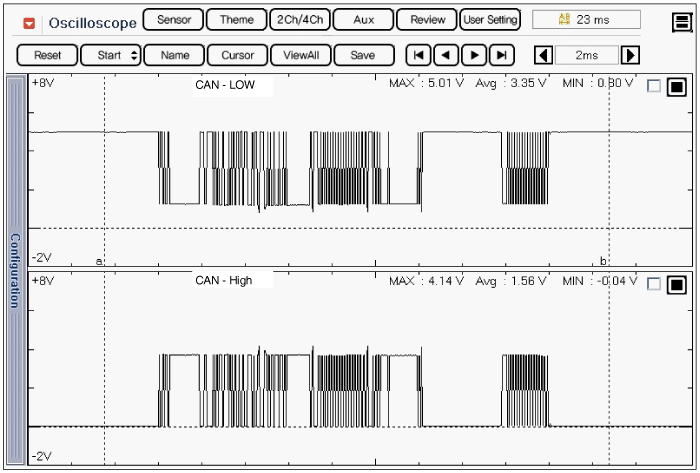

Signal Waveform & Data
