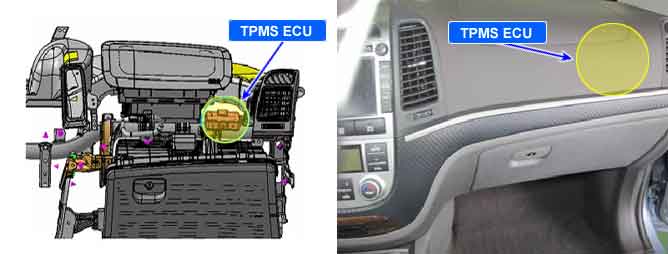

The TPMS system is the shorten word of Tire Pressure Monitoring System. This system monitors the pressure of the tire and when it drops below a certain pressure, the TPMS ECU makes the warning lamp turn on for notifying the driver. This system consists of TPMS ECU(or TPMS Receiver), Initiators and TPMS sensors. The TPMS ECU monitors the battery voltage to determine, as a safety issue, whether this system can operate normally or not. The normal battery voltage range is essential for controlling this system as intended.
The TPMS ECU monitors the voltage of battery and if it stays above a certain value, this DTC is set.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Monitoring the voltage of battery |
•
Poor connection in power supply circuit
•
Faulty TPMS ECU
•
Low voltage of battery
•
Faulty charging system |
Enable Conditions |
•
IG KEY ON | |
Threshold value |
•
The battery voltage is above 17.5V |
