3.

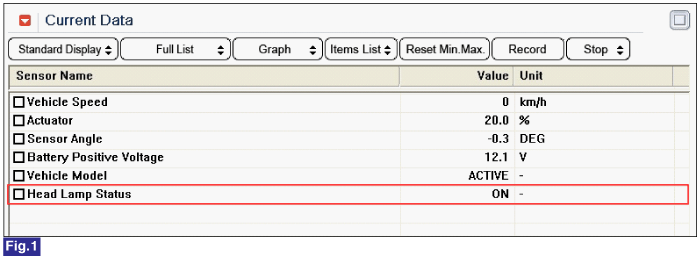

Check "HEAD LAMP status" parameter on Scantool.
Specification : When Head Lamp is ON : "ON"
Connect scantool with Diagnostic Connector.
Engine "ON" and Turn on the auto head light system.
Check "HEAD LAMP status" parameter on Scantool.
Specification : When Head Lamp is ON : "ON"
Is the current data normal ?
 | ▶ This is a intermittent problem caused by poor contact of component or Control Unit ▶ Thoroughly check the looseness, poor connection, bent, corrison, contamination, deformation or damage of connector. ▶ Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Inspection and Repair" procedure. |
