Component Inspection
■ Check Voltage in Control Circuit
1.

IG key OFF.

2.

Disconnect VGT actuator connector.

3.

Check resistance between CAN High and Low terminal of 'ELECTRICAL VGT ACTUATOR'.

Specification : 2.4 kΩ

note
To view Flash content, you need to install the appropriate browser extension
4.

Is the measured value within specification?

▶ Go to "Control signal waveform inspection" procedure.

▶ Repair 'ELECTRICAL VGT ACTUATOR' , and go to "Verification of Vehicle Repair" procedure.

■ Control signal waveform inspection
5.

IG key ON and warm engine up its temperature to be higher than 70℃.

6.

Place oschilloscope probe at CAN High and Low terminal of VGT actuator.

7.

Check output signal of CAN communication.

note
To view Flash content, you need to install the appropriate browser extension

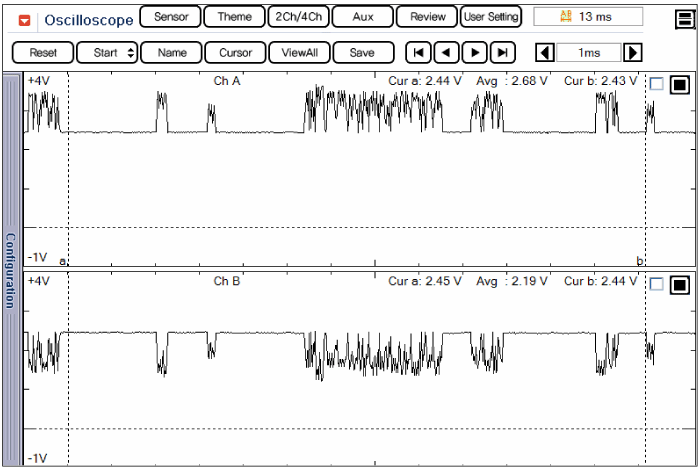

Reference signal waveform
8.

Is the measured value within specification?

▶ Go to "Verification of Vehicle Repair" procedure.

▶ Repair 'ELECTRICAL VGT ACTUATOR' , and go to "Verification of Vehicle Repair" procedure.
