Set up 'GDS' with 'GDS TPMS'.
Select the "CURRENT DATA" function of "TPMS" system.
Monitor the parameters related to 'Front Left LFI' on the GDS.
Specification : When the vehicle is driving over 25 km/h.
'Front Left No Response Pulse Recvd' is 'NO'.
'Front Left Fail Pulse Detected' is 'NO'.
'Front Left Pass Pulse Detected' is 'YES'.

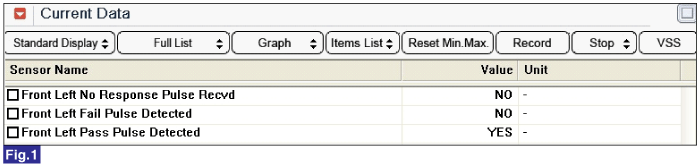

Fig.1) Detect pulse from LFI(normal)
Are parameters normal?
 | ▶ Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet. ▶ Go to "Verification of vehicle Repair" procedure. |
 | ▶ Go to "Inspection/Repair" procedure. |
