4.
Monitor the service data of each TPMS sensor on the GDS.
Specification : The service data of each TPMS sensor can be normally shown on the GDS.
Park the vehicle on an even ground.
Connect GDS to Data Link Connector(DLC).
IG "ON"

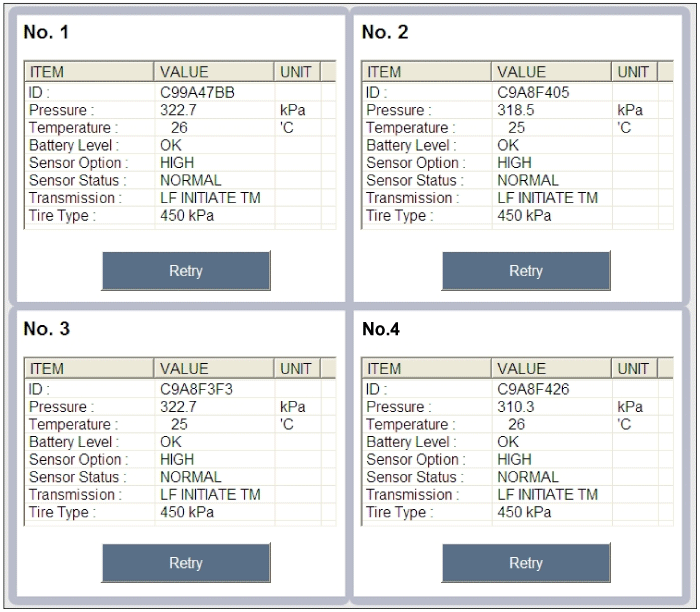

Monitor the service data of each TPMS sensor on the GDS.
Specification : The service data of each TPMS sensor can be normally shown on the GDS.
Is the service data shown normally?
 | ▶ Fault is intermittently caused or was repaired and TPMS ECU memory was not cleared. Go to "Verification of Vehicle Repair" procedure. |
 | ▶ Check if the TPMS sensor which is not fitted with the vehicle specifications is installed. ▶ Substitute with a known-good TPMS ECU and check for proper operation. If problem is corrected, replace TPMS ECU and then go to "Verification of Vehicle Repair" procedure. |
