4.
Operate "TPMS Lamp-Right Front" item of the Actuation Test by force.
Specification: The TPMS Lamp-Right Front turns on.

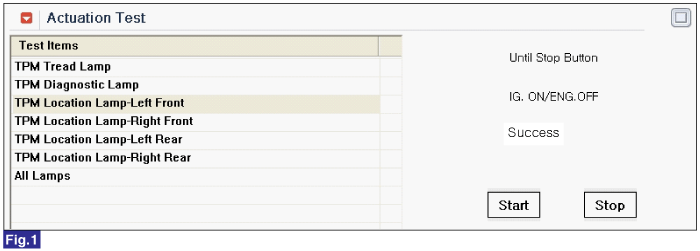

Fig.1) Displayed data when the "TPMS Lamp-Right Front" turns on by
Park the vehicle on an even ground.
Connect GDS to Data Link Connector(DLC).
IG "ON"
Operate "TPMS Lamp-Right Front" item of the Actuation Test by force.
Specification: The TPMS Lamp-Right Front turns on.
Fig.1) Displayed data when the "TPMS Lamp-Right Front" turns on by
Is the service data shown normally?
 | ▶ Fault is intermittently caused then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to Next procedure. |
