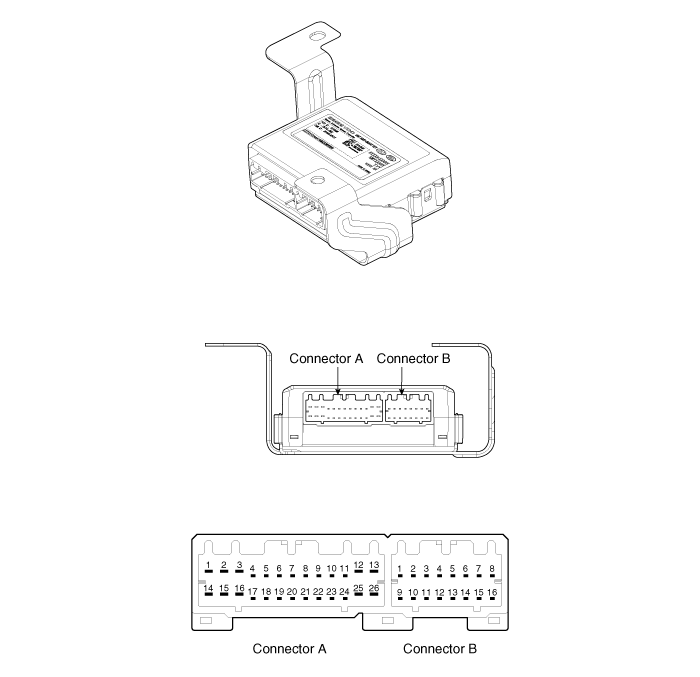

No | Connector A (26 Pin) | No | Connector B (16 Pin) | ||
1 | BAT. Voltage | 17 | KEY OUT indicator | 1 | Interior 2 Antenna 2 |
2 | IMMO indicator | 18 | ESCL enable | 2 | Interior 1 Antenna 2 |
3 | Ground 1 | 19 | - | 3 | - |
4 | - | 20 | Front-right door Lock/Unlock | 4 | - |
5 | Tailgate switch | 21 | - | 5 | Interior 3 Antenna 1 |
6 | Front-left door Lock/Unlock | 22 | DIAGNOSIS | 6 | Tailgate Antenna 1 |
7 | Exterior Buzzer | 23 | Start stop button switch | 7 | Front-right door Antenna 1 |
8 | ALT 'L | 24 | Brake | 8 | Front-left door Antenna 1 |
9 | ACC | 25 | EMScommunication | 9 | Interior 2 Antenna 1 |
10 | CAN HIGH | 26 | - | 10 | Interior 1 Antenna 1 |
11 | CAN LOW | 11 | - | ||
12 | ESCL communication | 12 | - | ||
13 | RF communication | 13 | Interior 3 Antenna 2 | ||
14 | IGN 1 | 14 | Tailgate Antenna 2 | ||
15 | P position | 15 | Front-right door Antenna 2 | ||
16 | Ground 2 | 16 | Front-left door Antenna 2 | ||
