2.

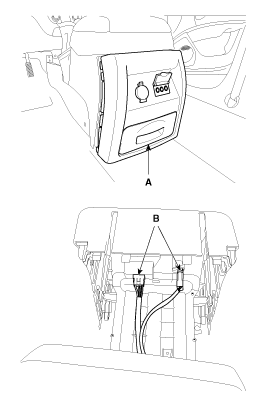

Remove the console rear cover (A) and connector (B) .
(Refer to the BD group - "Console")
Disconnect the negative (-) battery terminal.
Remove the console rear cover (A) and connector (B) .
(Refer to the BD group - "Console")
Remove the console assembly (A) after loosening the mounting screws.
(Refer to the BD group - "Console")
After disconnecting the smart key unit (A) connector, loosen the smart key unit mounting bolt (B)
Disconnect the negative (-) battery terminal.
Remove the console rear cover (A) and connector (B) .
(Refer to the BD group - "Console")
Remove the console assembly (A) after loosening the mounting screws.
(Refer to the BD group - "Console")
After loosening the mounting screws (2EA), disconnect the connector and remove the receiver (A).
Disconnect the negative (-) battery terminal.
Remove the console rear cover (A) and connector (B).
(Refer to the BD group - "Console")
Remove the console assembly (A) after loosening the mounting screws.
(Refer to the BD group - "Console")
Remove the heater air vent
After loosening the antenna nuts (2EA) and connector, remove the interior 1 antenna (A).
Disconnect the negative (-) battery terminal.
Remove the console rear cover (A) and connector (B).
(Refer to the BD group - "Console")
Remove the console assembly (A) after loosening the mounting screws.
(Refer to the BD group - "Console")
After loosening the antenna bolts (2EA) and connector, remove the interior 2 antenna (A).
Disconnect the negative (-) battery terminal.
Remove the tailgate trim (A).
After loosening the tailgate antenna bolts (2EA) and connector (A), remove the tailgate antenna (B).
When disconnecting the tailgate antenna connector, disconnect the connector by pulling out the look device as shown in the picture.
Disconnect the negative (-) battery terminal.
Remove the rear bumper.
(Refer to the BD group - "Rear bumper")
Disconnect the antenna connector (A) on the center of rear bumper.
After loosening the bolts (2EA), remove the exterior bumper antenna (B).
Disconnect the negative (-) battery terminal.
Remove the front left wheel guide.
Disconnect the connectors located in the side rail panel, then remove the buzzer (A) from the clip hole.
Disconnect the negative (-) battery terminal.
Disconnect the connector (A) after removing the door trim.
(Refer to the BD group - "Front door")
After loosening the mounting bolt, then remove the key holder (A).
Remove the outside handle (A) by sliding it rearward.
Disconnect the negative (-) battery terminal.
Remove the tailgate trim.
(Refer to the BD group - "Tailgate trim")
Remove the connector (A) and nuts (2EA) mounted on the tailgate switch.
Remove the tailgate switch (A) after removing the rear garnish.
Refer to BE group - inspection / self diagnosis with scan tool.
Refer to BE group - inspection / self diagnosis with scan tool.
Refer to BE group - inspection / self diagnosis with scan tool.
Check for continuity between the tailgate latch terminals.
If continuity is not specified, inspect the switch
Install the smart key unit.
Install the smart key unit mounting nuts, and then connect the connector.
Install the console assembly.
Install the console rear cover.
Install the negative (-) battery terminal and check the smart key system.
Install the RF receiver.
Install the console assembly.
Install the console rear cover.
Install the negative (-) battery terminal and check the smart key system.
Install the interior 1 antenna.
Install the heater air vent
Install the console assembly.
Install the console rear cover.
Install the negative (-) battery terminal and check the smart key system.
Install the interior 2 antenna.
Install the console assembly.
Install the console rear cover.
Install the negative (-) battery terminal and check the smart key system.
Install the interior 3 antenna.
Install the tailgate trim.
Install the negative (-) battery terminal and check the smart key system.
Install the exterior bumper antenna.
Install the rear bumper.
Install the negative (-) battery terminal and check the smart key system.
Install the buzzer.
Install the front left wheel guide.
Install the negative (-) battery terminal and check the smart key system.
Install the outside handle.
Install the key hole.
Install the door trim.
Install the negative (-) battery terminal and check the smart key system.
Install the tailgate switch.
Install the tailgate garnish.
Install the tailgate trim.
Install the negative (-) battery terminal and check the smart key system.
