3.
Check "Actuator" parameter on the scantool(It must be checked while vehicle is unloaded condition)
Specification : 20%±2%

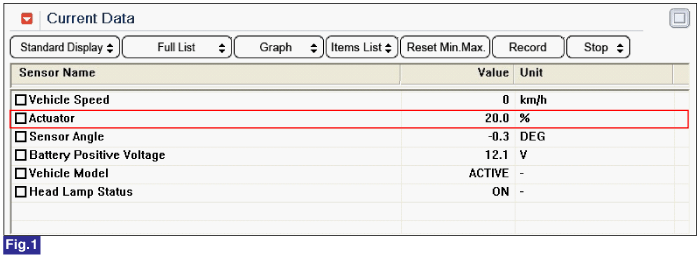

Fig.1) KEY ON
Connect scantool with Diagnostic Connector.
Engine "ON" and Turn on the auto head light system.
Check "Actuator" parameter on the scantool(It must be checked while vehicle is unloaded condition)
Specification : 20%±2%
Fig.1) KEY ON
Is the "actuator" parameter normal ?
 | ▶ This is a intermittent problem caused by poor contact of component or Control Unit ▶ Thoroughly check the looseness, poor connection, bent, corrison, contamination, deformation or damage of connector. ▶ Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Inspection and Repair" procedure. |
