4.
Inspect opearating status of Rear right valve(out) with Actuation Test.
Specification : It’s normal if operating sound is heard.

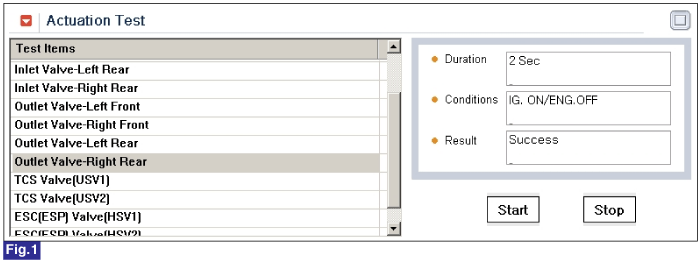

Fig.1) Test Condition : Ignition "ON" & Engine "OFF".
Ex) Actuation Test on Rear right valve(out)
Connect scantool to Data Link Connector(DLC)
Ignition "ON" & Engine "OFF".
Select the "Actuation Test" mode on the scantool.
Inspect opearating status of Rear right valve(out) with Actuation Test.
Specification : It’s normal if operating sound is heard.
Fig.1) Test Condition : Ignition "ON" & Engine "OFF".
Ex) Actuation Test on Rear right valve(out)
Does a Rear right valve(out) operate normally?
 | ▶ Fault is intermittent caused by poor connection in power harness and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Terminal and Connector Inspection" procedure. |
