1.

Connect scan tool with 'DATA LINK CONNECTOR' (DLC).

2.

Warm engine up to normal operating temperature.

3.

Turn all the electrical devices including air conditioner OFF.

4.

Monitor "A/C ON SIGNAL SWITCH" and "A/C PRESSURE SENSOR" parameter on the scan tool.

Reference value :

"A/C ON SIGNAL SWITCH" is "OFF" : "A/C PRESSURE SENSOR" is 1200mV~1800mV

"A/C ON SIGNAL SWITCH" is "ON" : Higher than A/C "OFF" pressure by more than 500mV

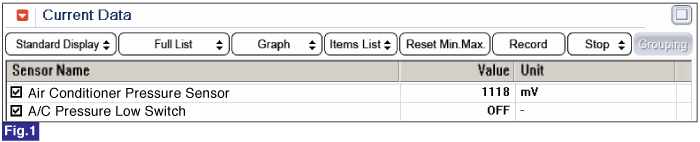

Fig.1) Data at idle and A/C "OFF".

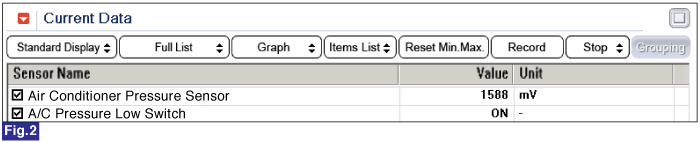

Fig.2) Data at idle and A/C "ON". A/C pressure transducer output voltage increases as A/C compressor operates.

☞ A/C pressure transducer voltage varies too much, therefore do not concern too much about the figure instead, check the rising tendency of A/C pressure transducer.
