Connect 'TPMS exciter' or GDS to Data Link Connector(DLC).
Select "TPMS DIAGNOSIS" mode.
Select the "FULL" mode of "LFI STATUS" function.

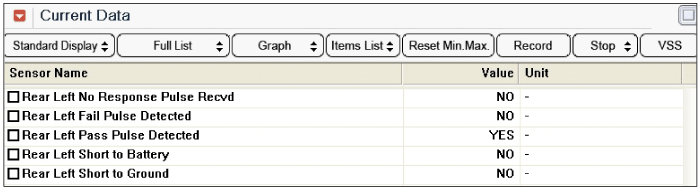

Monitor the parameters of Rear Left LFI on the 'TPMS exciter' or GDS.
Specification : 'Rear Left No Response Pulse Recvd' is 'NO'.
'Rear Left Fail Pulse Detected' is 'NO'.
'Rear Left Pass Pulse Detected' is 'YES'.
'Rear Left Short to Battery' is 'NO'.
'Rear Left Short to Ground' is 'NO'.
Are parameters within specifications?
 | ▶ Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet. ▶ Go to "Verification of vehicle Repair" procedure. |
 | ▶ Go to "Inspection/Repair" procedure. |
