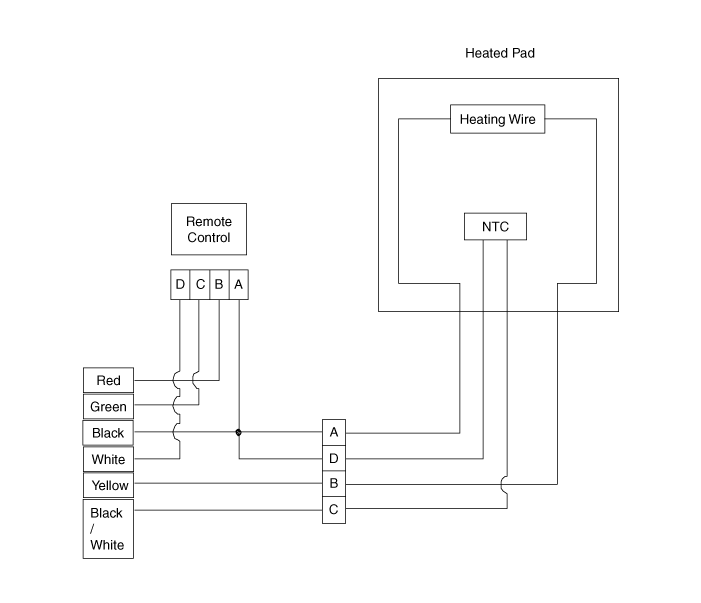

Connector terminal

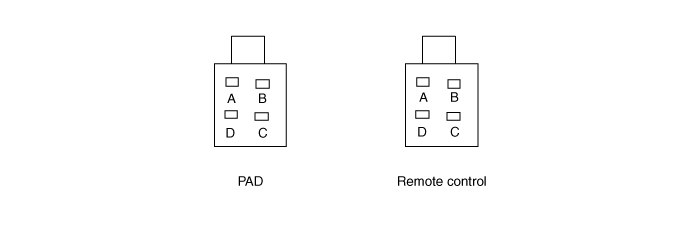

Connector terminal
Terminal Function
Connector | Terminal | Function | Wire color |
PAD | A | GND | Black |
B | Heater | Yellow | |
C | NTC+ | Black/Yellow | |
D | NTC- | Black |
Connector | Terminal | Function | Wire color |
Remote contril | A | GND | Black |
B | BAT | Red | |
C | LED | Green | |
D | Switch | White |
