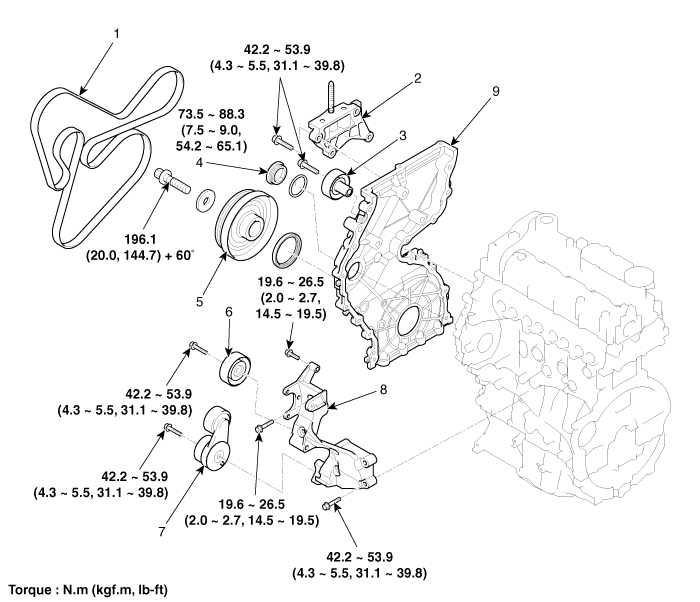

1. Drive belt

2. Engine support bracket

3. Idler (#2)

4. High pressure pump chain sproket service plug

5. Crankshaft damper pulley

6. Idler (#1)

7. Drive belt tensioner

8. Fead system bracket assembly

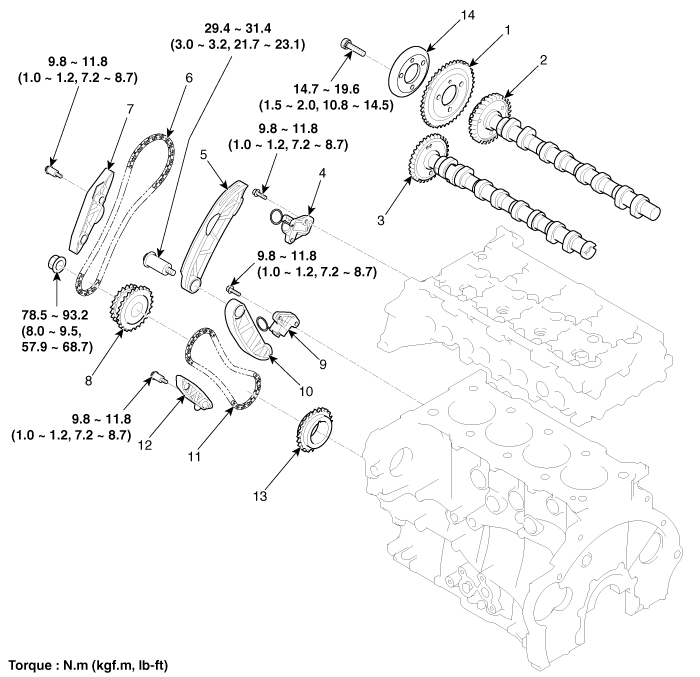

1. Camshaft chain sprocket

2. Exhaust camshaft gear

3. Intake camshaft gear

4. Timing chain "B" auto tensioner

5. Timing chain "B" tensioner lever

6. Timing chain "B"

7. Timing chain "B" guide

8. High pressure pump chain sprocket

9. Timing chain "A" auto tensioner

10. Timing chain "A" tensioner lever

11. Timing chain "A"

12. Timing chain "A" guide

13. Crankshaft chain sproket

14. Dumy mass
