1. Cylinder head cover

2. Cylinder head sub gasket

3. Cylinder head main gasket

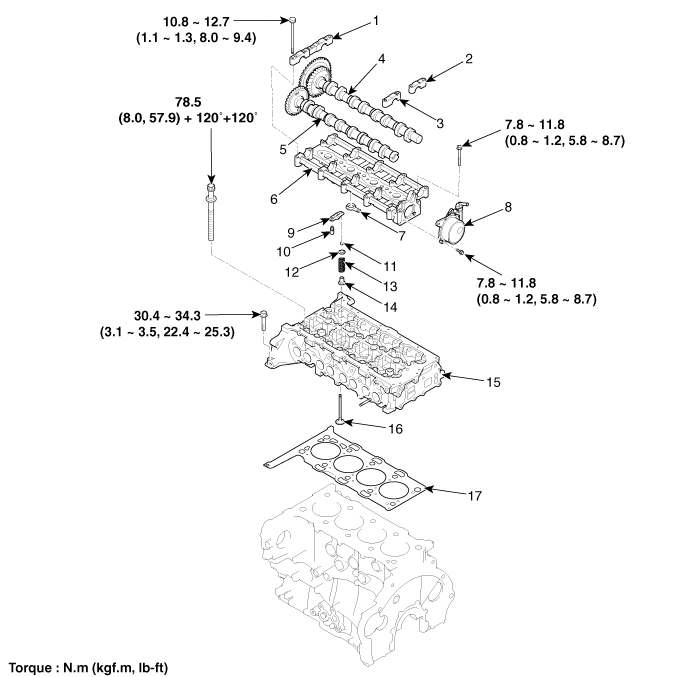

1. Front camshaft bearing cap

2. Exhaust camshaft bearing cap

3. Intake camshaft bearing cap

4. Exhaust camshaft

5. Intake camshaft

6. Cam carrier

7. Cam carrier gasket

8. Vacuum pump

9. Cam follower

10. HLA(Hydraulic Lash Adjuster)

11. Valve spring retainer lock

12. Valve spring retainer

13. Valve spring

14. Valve stem seal

15. Cylinder head

16. Valve

17. Cylinder head gasket
