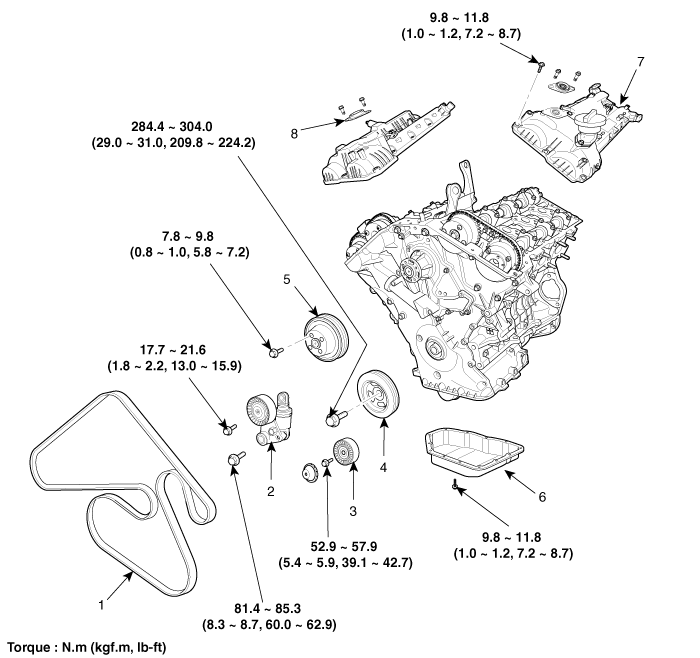

1. Drive belt

2. Drive belt tensioner

3. Idler

4. Crank shaft pulley

5. Water pump pulley

6. Oil pan

7. Cylinder head cover

8. OCV cap

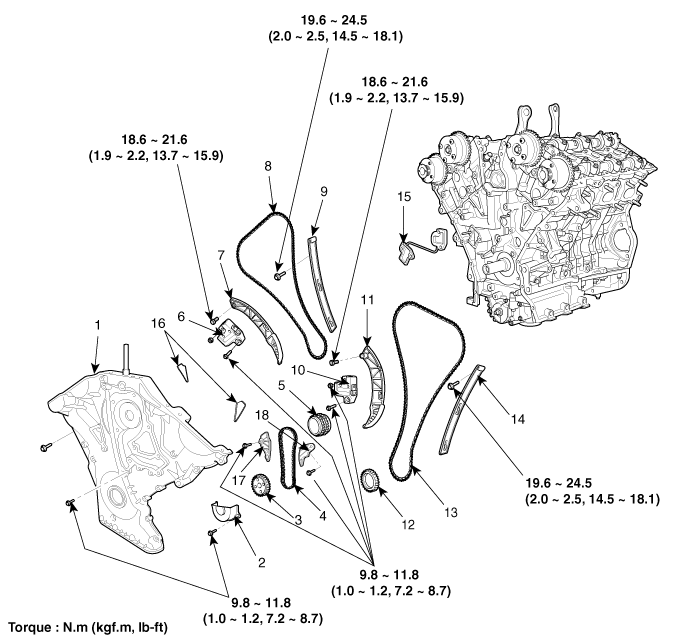

1. Timing chain cover

2. Oil pump chain cover

3. Oil pump sprocket

4. Oil pump chain

5. Crankshaft sprocket

6. Timing chain auto tensioner

7. Timing chain tensioner arm

8. Timing chain

9. Timing chain guide

10. Timing chain auto tensioner

11. Timing chain tensioner arm

12. Crankshaft sprocket

13. Timing chain

14. Timing chain guide

15. Tensioner adapter

16. Gasket

17. Oil pump chain guide

18. Oil pump tensioner assembly
