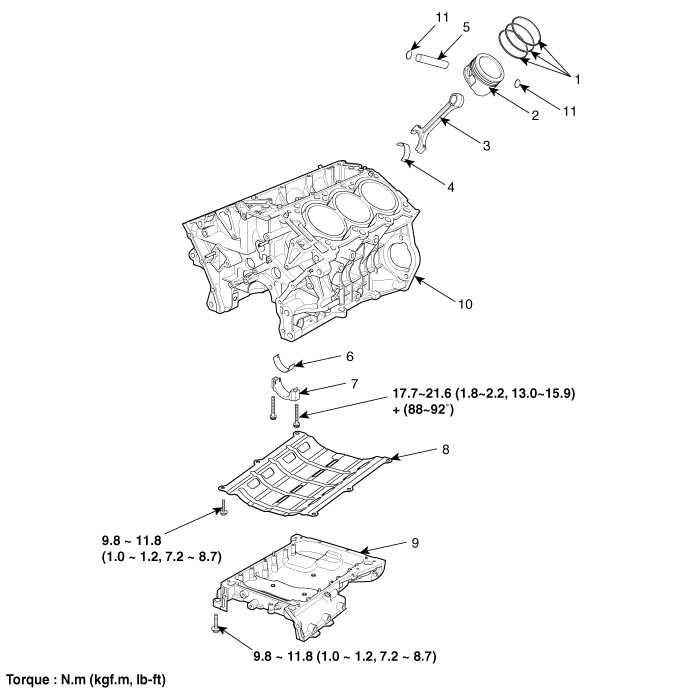

1. Piston ring

2. Piston

3. Connecting rod

4. Connecting rod upper bearing

5. Piston pin

6. Connecting rod lower bearing

7. Connecting rod bearing cap

8. Baffle plate

9. Upper oil pan

10. Cylinder block

11. Snap ring

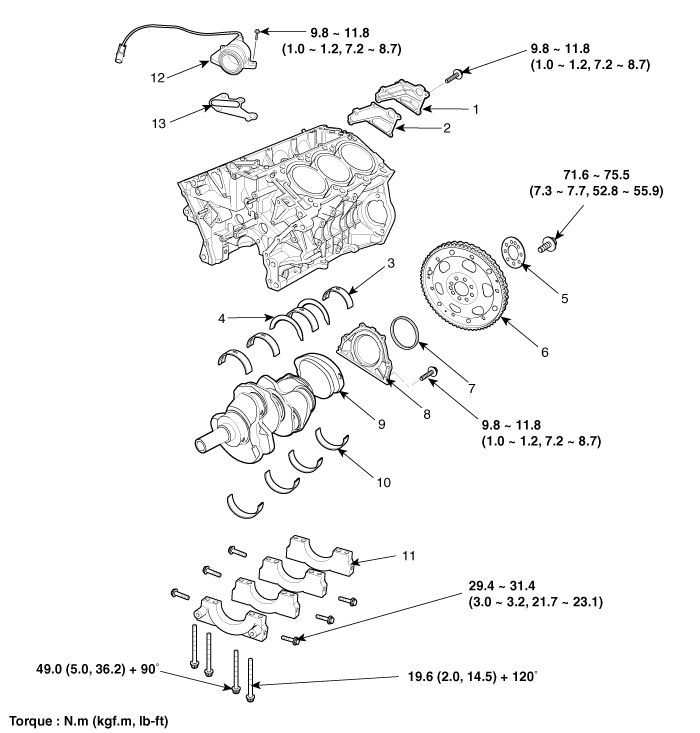

1. Oil drain cover

2. Oil drain cover gasket

3. Crank shaft upper bearing

4. Thrust bearing

5. Adapter plate

6. Drive plate

7. Rear oil seal

8. Rear oil seal case

9. Crankshaft

10. Crankshaft lower bearing

11. Main bearing cap

12. Oil cover

13. Oil cover gasket
