2.
After disconnecting the trip sensor connector (A), remove the cluster facia panel (B).
When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
Put on gloves to protect your hands.
Tilt the steering column down.
After disconnecting the trip sensor connector (A), remove the cluster facia panel (B).
Installation is the reverse the removal.
Loosen the screws.
Remove the cluster (A).
Disconnect the cluster connector (A), then remove the cluster (B).
Installation is the reverse of removal.
Make sure the connector are plugged in properly.
When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
Put on gloves to protect your hands.
Remove the crash pad lower panel.
Remove the center lower garnish (A).
Remove the speaker grill (A).
Loosen the mounting screw, remove the speaker grill (A).
Disconnect the connector (A).
After loosening the mounting screw, remove the center facia panel (A).
Installation is the reverse of removal.
Make sure the connector are plugged in properly.
Remove the crash pad side cover.
Remove the switch assembly (A).
Loosen the mounting screw, remove the lower panel (B).
Disconnect the connector (A).
Remove the reinforcing panel(A).
Installation is the reverse of removal.
Remove the center pacia panel.
After loosening the heater control mounting screw, remove the heater control unit (A).
Disconnect the connector (A).
Installation is the reverse of removal.
Make sure the connector is plugged in properly.
Remove the center facia panel.
Loosen the screws.
Disconnect the audio connector and antenna cable, then remove the audio assembly (A).
Installation is the reverse of removal.
Make sure the connector are plugged in properly.
Disconnect the damper (B) from the glove box (A).
Remove the glove box (A) from the lift (B).
Disconnect the pine (A), then remove the glove box (B).
Remove the glove box housing (A).
Installation is the reverse of removal.
Remove the crash pad side cover.
Remove the center garnish (A).
After loosening the mounting screw, then remove the air vent (A).
Installation is the reverse of removal.
Remove the crash pad side cover.
Remove the crash pad center lower garnish.
After loosening the mounting screw, then remove the air vent (A).
Installation is the reverse of removal.
When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
Put on gloves to protect your hands.
Remove the crash pad side cover(A).
Installation is the reverse of removal.
Loosen the screws, then remove the shroud assembly (A).
Installation is the reverse of removal.
Loosen the screws, then remove the glove box under cover (A).
Installation is the reverse of removal.
When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
Put on gloves to protect your hands.
Remove the following items.
Front seat.
Cluster facia panel and cluster.
Audio assembly.
Glove box.
Side cover, center under cover.
Front pillar trim.
Remove the photo sensor (E)

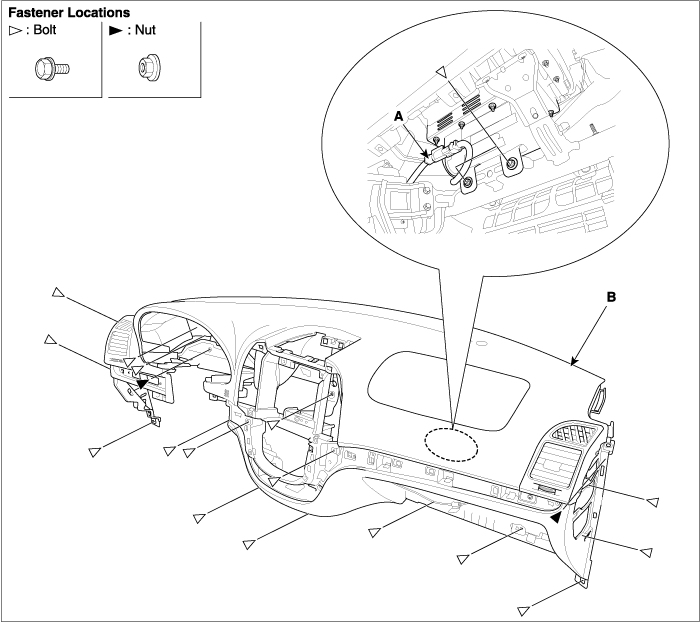

Disconnect the passenger's air bag connector (A), loosen the bolt and nut, then remove the crash pad (B).
Installation is the reverse of removal.
Make sure the crash pad fits onto the guide pins correctly.
Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
Make sure the connectors are plugged in prop-erly, and the antenna lead is connected properly,
Enter the anti- theft code for the radio, then enter the customer's radio station presets.
