Front Body A

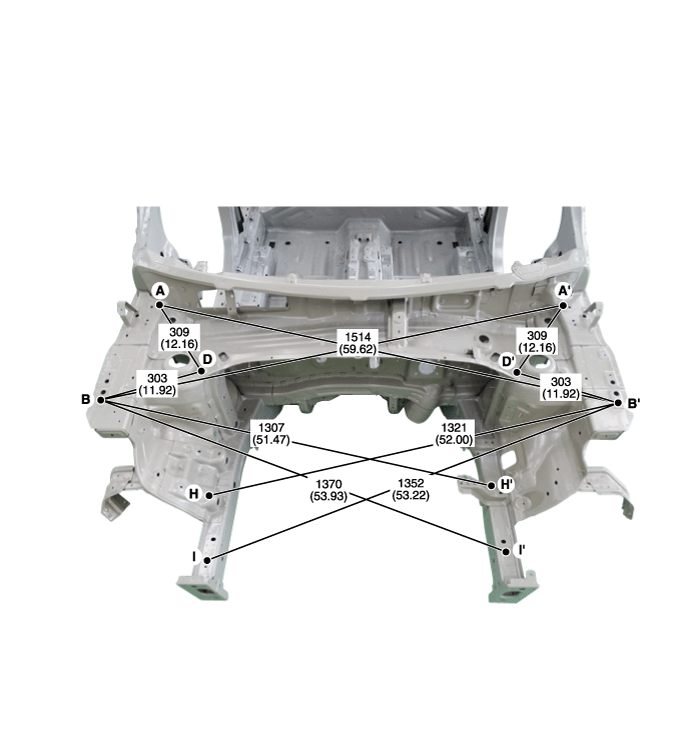

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Front Body B

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Front Body C

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Front Body D

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Hood hinge mounting hole (Ø11)

Hood hinge mounting hole (Ø11)

Fender mounting hole (Ø6.6)

Fender mounting hole (Ø6.6)

Fender apron upper panel tooling hole (Ø8)

Fender apron upper panel tooling hole (Ø6)

Front shock absorber mounting hole (Ø14)

Front pillar outer corner

Front pillar outer corner

Engine mounting bracket hole (Ø12)

Transaxle mounting hole (Ø12)

Engine mounting bracket hole (Ø12)

Transaxle mounting hole (Ø13)

Front side member tooling hole (Ø9)

Front side member tooling hole (Ø6.6)

Front end module mounting hole (Ø11)
