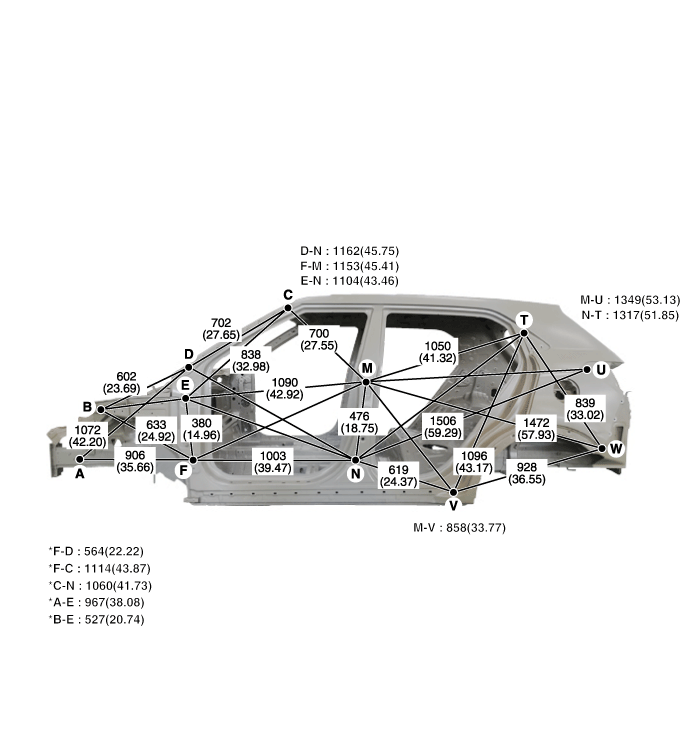

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

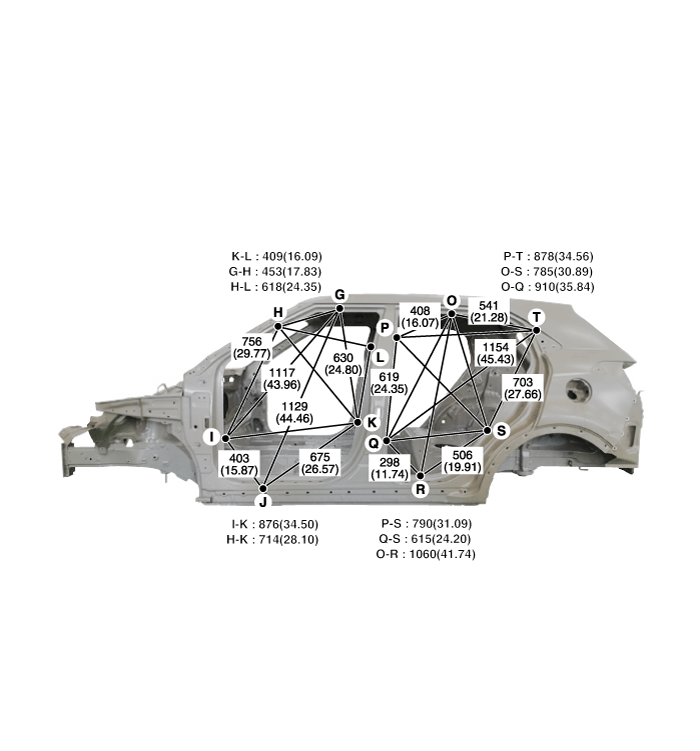

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
 |  |  |
Front side member tooling hole (Ø12) | Fender apron upper panel tooling hole (Ø7) | Front pillar garnish mounting hole (Ø7) |
 |  |  |
Front pillar garnish mounting hole (Ø7) | Front door upper hinge mounting hole (Ø13) | Front door lower hinge mounting hole (Ø13) |
 |  |  |
Side outer panel notch | Side outer panel notch | Side outer panel notch |
 |  |  |
Side outer panel notch | Side outer panel notch | Side outer panel notch |
 |  |  |
Rear door upper hinge mounting hole (Ø13) | Rear door lower hinge mounting hole (Ø13) | Side outer panel notch |
 |  |  |
Side outer panel notch | Side outer panel notch | Side outer panel notch |
 |  |  |
Side outer panel notch | Side outer panel mounting hole (Ø7) | Rear combination lamp tooling hole (Ø6) |
 |  | |
Side sill garnish mounting hole (10x10) | Bumper mounting hole (8.5x9.5) |
