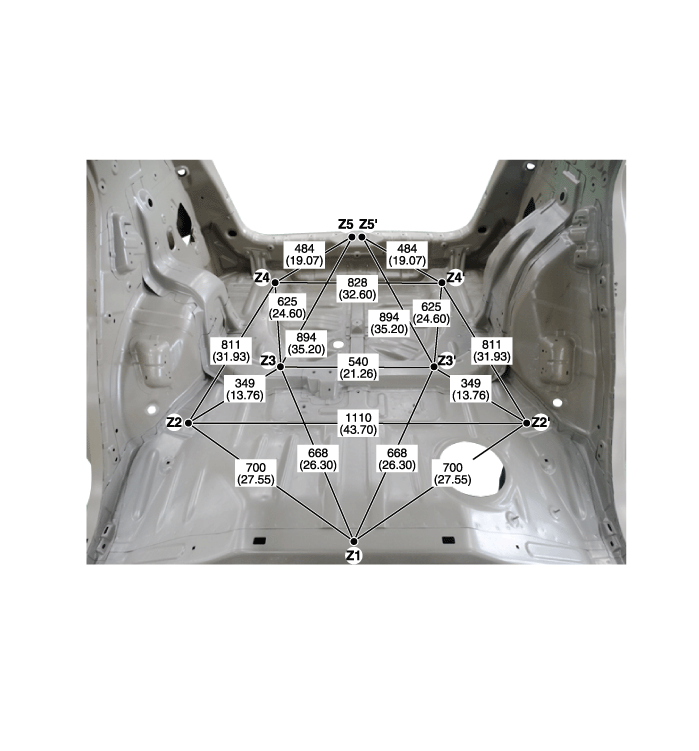

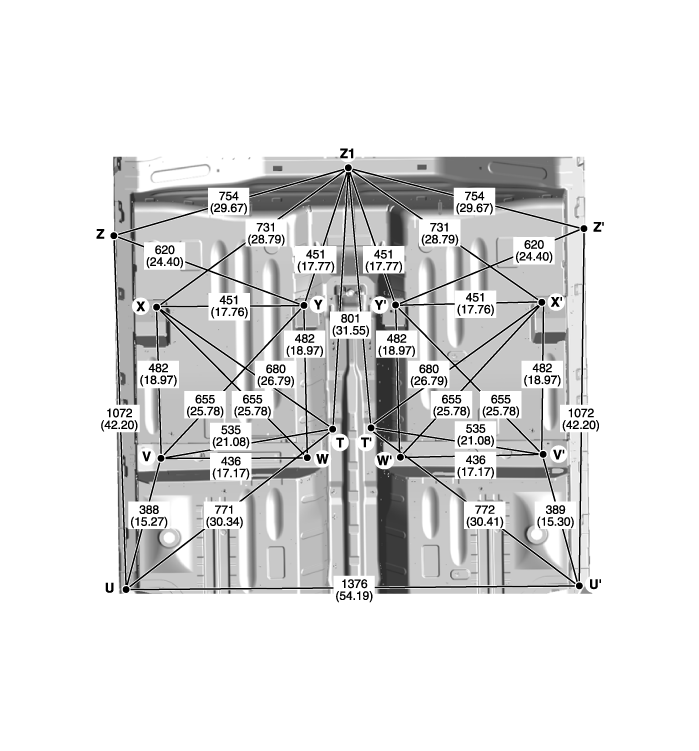

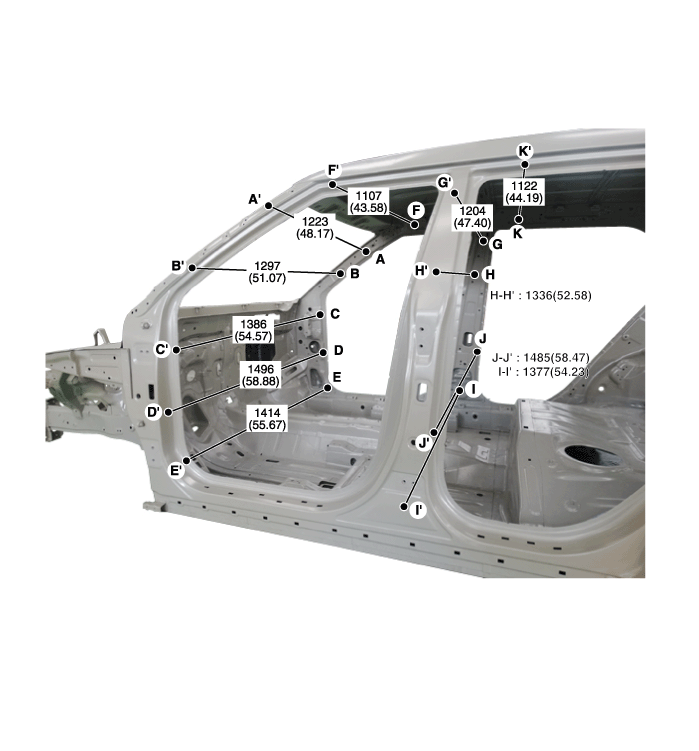

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
 |  |  |
Curtain airbag mounting hole (Ø6.6) | Curtain airbag mounting hole (Ø6.6) | Curtain airbag mounting hole (Ø6.6) |
 |  |  |
Cowl crossbar mounting hole (Ø9) | Front door checker mounting hole (Ø12) | Cowl side trim mounting hole (Ø8.5) |
 |  |  |
Curtain airbag mounting hole (Ø6.6) | Curtain airbag mounting hole (Ø6.6) | Seat belt height adjuster upper mounting hole (Ø16) |
 |  |  |
Seat belt height adjuster lower mounting hole (Ø16) | Seat belt pretensioner mounting hole (Ø12) | Rear door checker mounting hole (Ø13) |
 |  |  |
Curtain airbag mounting hole (Ø8) | Quarter inner upper panel tooling hole (Ø10) | Quarter inner upper panel tooling hole (Ø10) |
 |  |  |
Quarter inner upper panel mounting hole (Ø15) | Seat striker mounting hole (Ø9) | Seat striker mounting hole (Ø9) |
 |  |  |
Rear door striker mounting hole (Ø13) | Quarter inner lower panel mounting hole (Ø8.6) | Quarter inner upper extension mounting hole (12x7) |
 |  |  |
Quarter inner upper extension mounting hole(12x7) | Side trim mounting hole (Ø8.5) | Side trim mounting hole (Ø8.5) |
 |  |  |
Center floor panel tooling hole (Ø9) | Wiring mounting hole(7x12) | Seat belt mounting hole (Ø13) |
 |  |  |
Seat belt mounting hole (Ø13) | Seat belt mounting hole (Ø11) | Seat belt mounting hole (Ø13) |
 |  |  |
Seat belt mounting hole (Ø13) | Seat belt mounting hole (Ø11) | Side sill inner corner |
 |  |  |
Carpet mounting hole (Ø7) | Seat belt mounting hole (Ø15) | Rear floor cross member tooling hole (Ø12) |
 |  |  |
Rear floor cross member tooling hole (Ø12) | Rear floor panel mounting hole (8.5x8.5) | Tail gate striker mounting hole (Ø16) |
