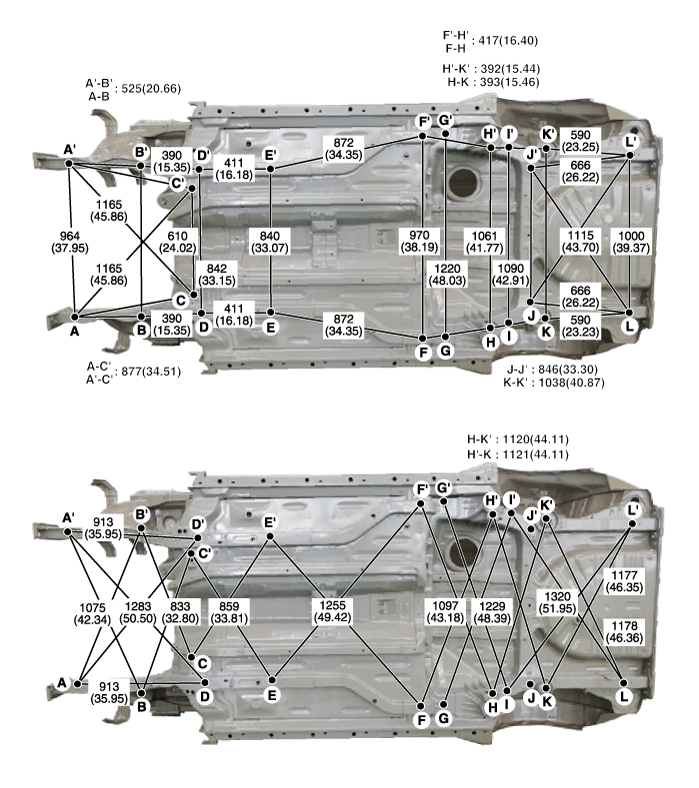

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Front side member tooling hole (Ø25)

Front side member tooling hole (Ø25)

Front sub frame mounting bolt

Sub frame mounting hole (Ø22)

Sub frame mounting hole (Ø22)

Sub frame mounting hole (Ø11)

Front floor side member tooling hole (Ø12)

Center floor side member tooling hole (Ø8)

Rear floor side member tooling hole (Ø25)

Brake line mounting hole (Ø11)

Rear floor side member tooling hole (Ø16)

Bracket hose mounting hole (Ø7)

Bracket hose mounting hole (Ø7)

Rear suspension spring mounting hole (Ø30)

Rear floor side member tooling hole (Ø10)
