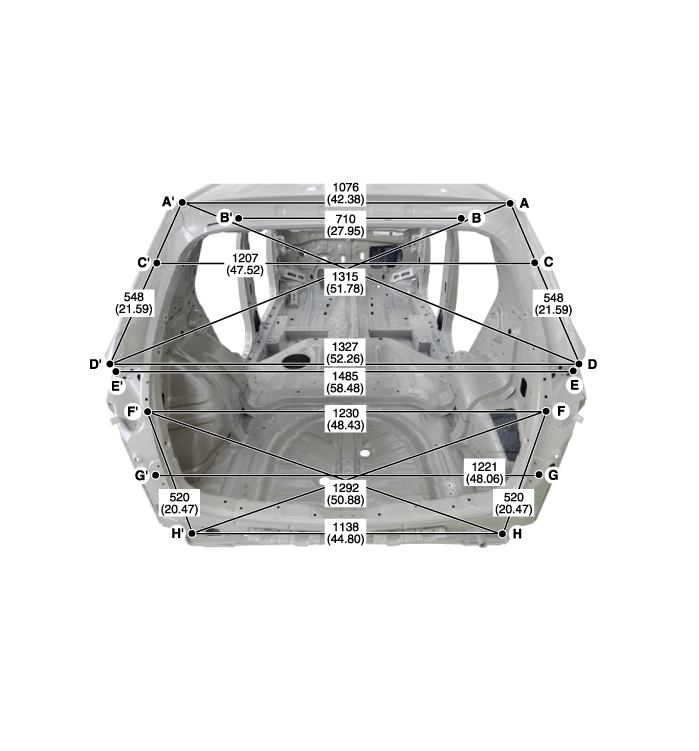

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Side outer panel rear corner

Tail gate hinge mounting hole (10x12)

Tail gate hinge mounting hole (Ø10)

Tail gate lifter mounting hole (Ø10)

Side outer panel rear corner

Rear combination lamp mounting hole (Ø8)

Rear bumper mounting hole (7X7)

Tail gate guide mounting hole (Ø10)

Rear bumper mounting hole (14X12)

Rear bumper mounting hole (14X12)
