4.
Monitor "VEHICLE SPEED SENSOR" parameter on the "Current Data" with GDS.
Specification : Current vehicle speed is displayed.

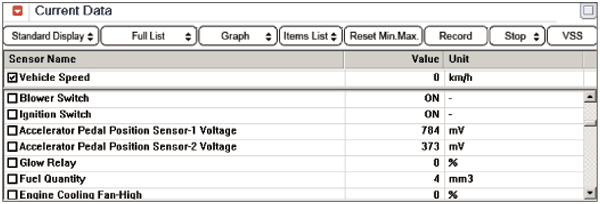

Fig.1) Check if current vehicle speed is same as vehicle speed displayed on the GDS.
Connect GDS to Data Link Connector (DLC).
Warm engine up to normal operating temperature.
Turn "OFF" electrical devices and A/C.
Monitor "VEHICLE SPEED SENSOR" parameter on the "Current Data" with GDS.
Specification : Current vehicle speed is displayed.
Fig.1) Check if current vehicle speed is same as vehicle speed displayed on the GDS.
