Injector Component Resistance | Injector Operating Voltage | Injector Operating Current | Injector Control Type |
0.255Ω±0.04 (20℃). | 80V | Peak current : 18±1A Hold in current : 12±1A Recharging current : 7A | Current control |

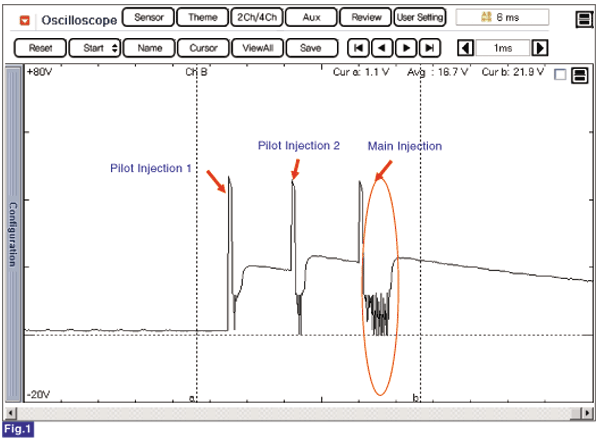

Fig.1) Injector operating waveform at Low side, It shows 2 pilot and 1 main injection.

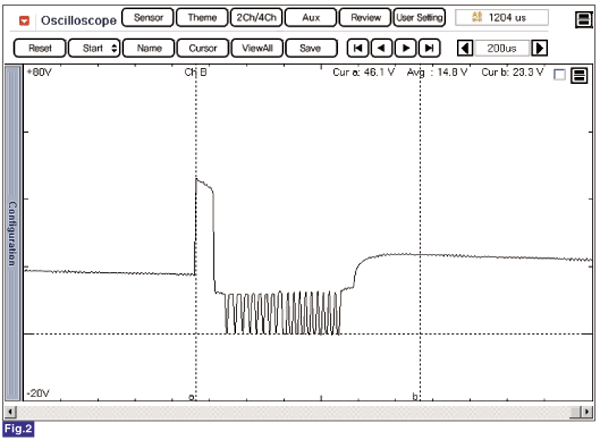

Fig.2) Magnified waveform of main injection at Fig.1)
