3.
Measure the waveform of "Rail pressure sensor" on the "Current Data" with GDS.

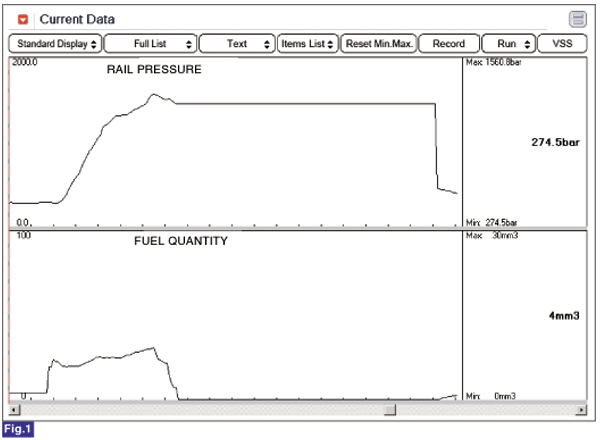

Fig.1) This waveform shows the rise of RPS output voltage at rapid acceleration.
Connect GDS to Data Link Connector (DLC).
Warm engine up to normal operating temperature.
Measure the waveform of "Rail pressure sensor" on the "Current Data" with GDS.
Fig.1) This waveform shows the rise of RPS output voltage at rapid acceleration.
