VGT Control solenoid valve component resistance | VGT Control solenoid valve operating Hz | VGT Control solenoid valve operating duty |
14.7 ~ 16.1Ω (20℃) | 300Hz | 79% at idle, decreases as accelerating |

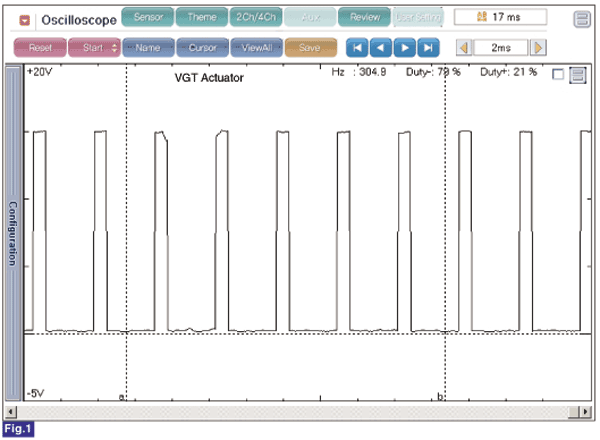

Fig.1) VGT Control solenoid valve output waveform at 79% duty. Duty decreases as boost pressure increases.

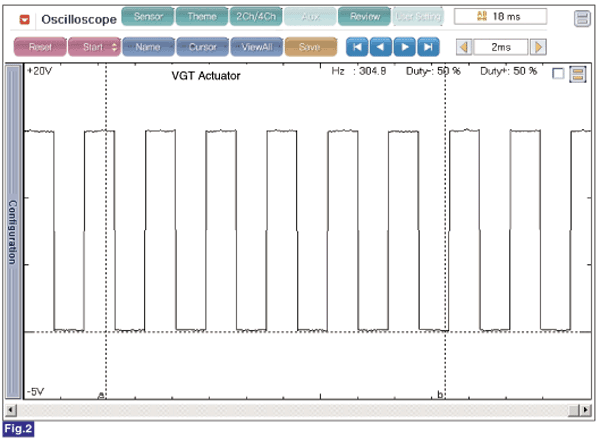

Fig.2) VGT Control solenoid valve duty decreased at acceleration.
