Condition
Brake Pedal Released
Brake Pedal Depressed
switch activated
Switch 1
Switch 2
Switch1
OFF
ON

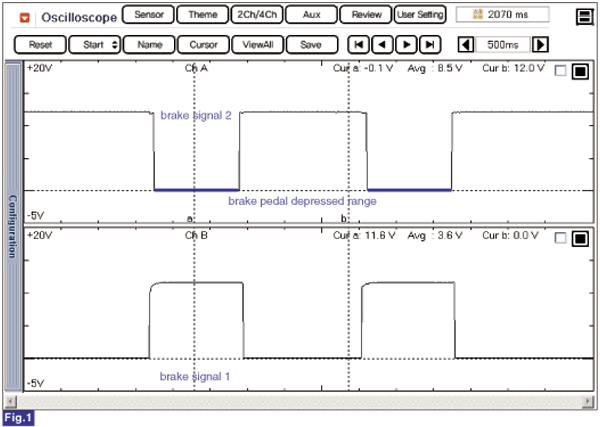

Fig.1) The waveform of brake signal 1 and 2 are measured simultaneously. Both waveforms are symmetrical.
