Monitor GDS Data
1.

Connect GDS to Data Link Connector(DLC).

2.

Ignition "ON" & Engine "ON".

3.

Driving 1st speed to 6th speed at D-range.

4.

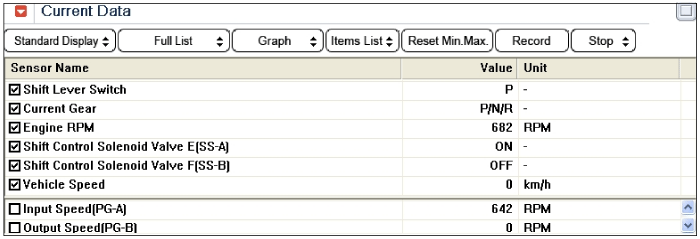

Selet "Current Data" mode and monitor "Shift Control Solenoid Valve(SS-B)" parameter current value.

Specification : See below data

Operating step table at each status

Solenoid

SS-A

SS-B

OD

N-H

35R

N-H

UD

N-H

26

N-L

N,P

○

○

○

○

1st

○

△

○

2nd

○

○

○

3rd

○

○

4th

○

5th

○

○

6th

○

○

○

L

○

○

REV

○

○

△

○

○ : Connected status

△ : Connedted at Vehicle speed above 8km/h

Clutch

Brake

35R

OD C

26 B

UD B

LR B

O.W.

P,N

●

R

●

●

D1

●

○

●

D2

●

●

D3

●

●

D4

●

●

D5

●

●

D6

●

●

○ : Operated at Vehicle speed under 5km/h

5.

Is Shift Control Solenoid Valve(SS-B) within specificon?

▶ Fault is intermittent caused by poor contact of PCM/TCM & sencor and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "Verification Vehicle Repair" procedure.

▶ Go to "Terminal and Connector Inspection" procedure.
