Monitor GDS Data
1.

Connect GDS to Data Link Connector(DLC).

2.

Ignition "ON" & Engine "ON".

3.

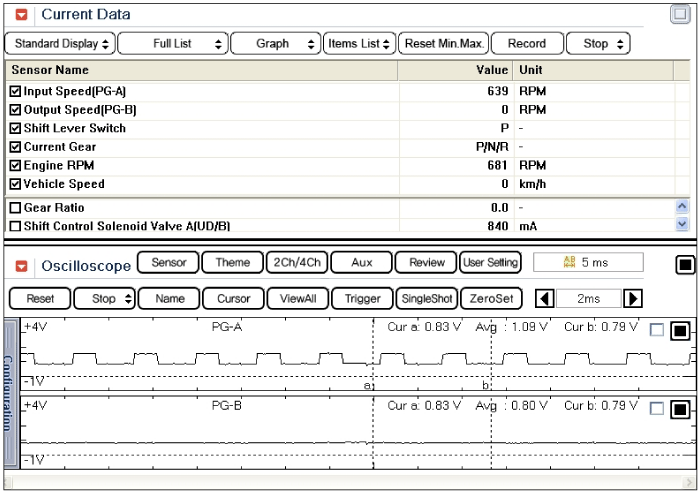

Selet "Current Data" "Output speed sensor(PG-B)" parameter.

4.

Driving above 20 Km/h.

Specification : Increasing Gradually

5.

Is measured "Output speed sensor" value within specific?

▶ Fault is intermittent caused by poor contact between TCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "Verification Vehicle Repair" procedure.

▶ Go to "Terminal and Connector Inspection" procedure.
