4.

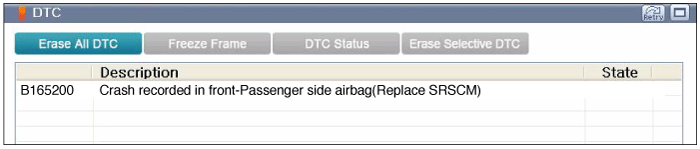

Using a GDS, clear the DTC.
Ignition "OFF", connect GDS.
Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes(DTC)" mode.
Monitor diagnostic trouble code and present of trouble code.
Using a GDS, clear the DTC.
Is DTC present problem ?
 | ▶ DTC caused by deployment of front passenger SAB and passenger CAB. Substitute with a SRSCM and check for proper operation. If the problem is corrected, replace SRSCM and then go to "Verification of Vehicle Repair" procedure. |
If you strike or spin the SRSCM at the IG “ON” state, the seat-belt pretensioner, curtain-airbag or side-airbag could be unfolded and bring on danger. Handle it with care.
