3.
Select "Aircon compressor Test(ECV Type)" mode and Performing inspection test.
(The check of A/C compressor's performance is possible only when ambient temperature is over 15℃.(59℉))
Vehicle Parked & Ignition ON.

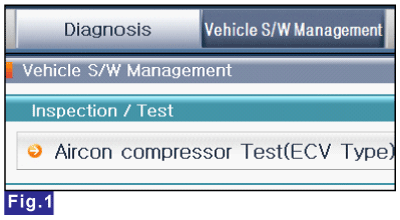

Connect Scantool and select "Vehicle S/W Management"" mode.
Select "Aircon compressor Test(ECV Type)" mode and Performing inspection test.
(The check of A/C compressor's performance is possible only when ambient temperature is over 15℃.(59℉))

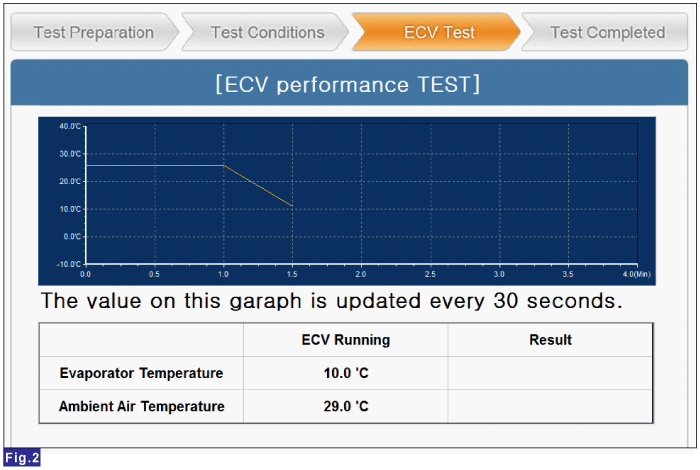

The result of ECV performance test is normal?
 | ▶ Go to " Wiring Inspection " procedure. |
 | ▶ Fault is intermittent caused by poor contact in the sensor’s and/or Control module’s connector or was repaired and Control module’s memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. ▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
